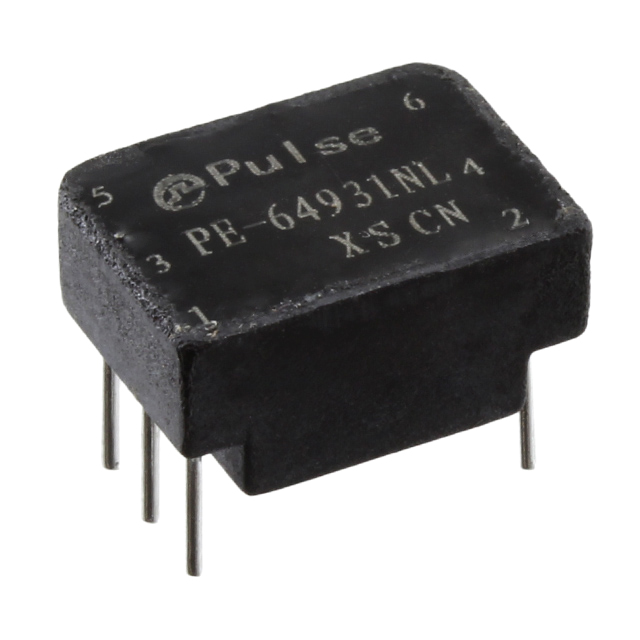

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Transformer Type T1/E1 (Single)
Inductance 1.2mH
Mounting Through Hole
Height - Seated (Max) 0.250" (6.35mm)
Weight 0.07 oz (1.99g)
Win Source Part Number 209769-PE-64931
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-64931 CAD Model

Description

The 209769-PE-64931 is a T1/E1 (single) transformer manufactured by Pulse Electronics Corporation.

  • Inductance: 1.2mH
  • Height: 0.250" (6.35mm)
  • Mounting: Through-hole
  • Weight: 0.07 oz (1.99g)
  • Supply and Demand Status: Limited
