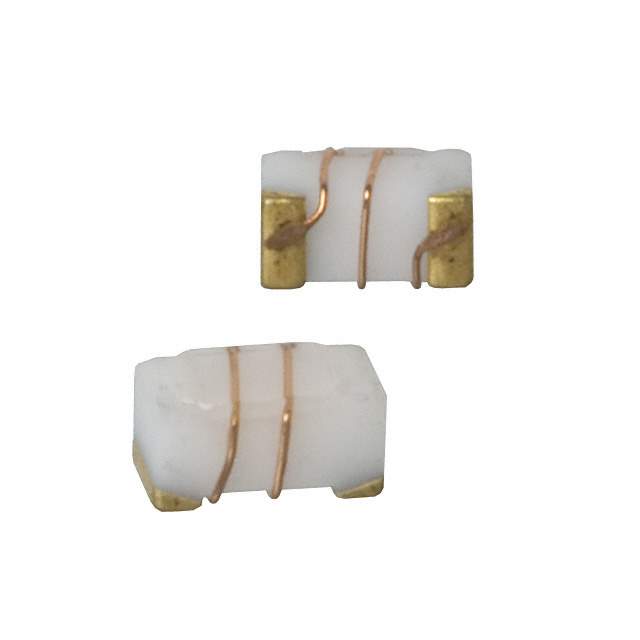

PE-0603CD180GTT Real Image
Same model may have multiple batches, images only for reference.

PE-0603CD180GTT

Part No PE-0603CD180GTT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 18NH 700MA 170MOHM SMD / 18 nH Unshielded Drum Core, Wirewound Inductor 700 mA 170mOhm Max 0603 (1608 Metric)
Datasheet
PE-0603CD180GTT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse Electronics
Series 0603CD
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 18 nH
Tolerance ±2%
Current Rating (Amps) 700 mA
Shielding Unshielded
DC Resistance (DCR) 170mOhm Max
Q @ Freq 35 @ 180MHz
Frequency - Self Resonant 3.1GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 250 MHz
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Size / Dimension 0.071" L x 0.049" W (1.80mm x 1.24mm)
Height - Seated (Max) 0.040" (1.02mm)
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1342305-PE-0603CD180GTT
Ultra Librarian 3D Model Ultra Librarian PE-0603CD180GTT CAD Model

Description

The Pulse Electronics 1342305-PE-0603CD180GTT is a drum core, wirewound inductor that belongs to the 0603CD series. Bold text is added to Pulse Electronics.

  • Series: 0603CD
  • Core Type: Drum Core
  • Winding Type: Wirewound
  • Shielding: Unshielded
  • Size: 0.071" L x 0.049" W (1.80mm x 1.24mm)
  • Inductance: 18 nH
  • Maximum Seated Height: 0.040" (1.02mm)
  • Tolerance: ±2%
  • DC Resistance (DCR): 170mOhm Max
  • Operating Temperature: -40°C to 125°C
  • Current Rating: 700 mA
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • RoHS Compliant: Yes
