Same model may have multiple batches, images only for reference.

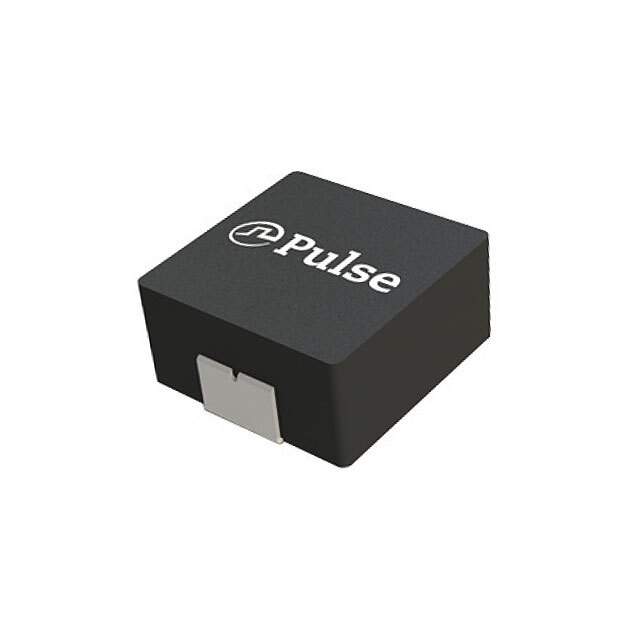

PA4343.103NLT Real Image
Same model may have multiple batches, images only for reference.

PA4343.103NLT

Part No PA4343.103NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 10UH 10A 16.5 MOHM SMD / 10 µH Shielded Molded Inductor 10 A 16.5mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series PA4343.XXXNLT
Package Tape & Reel
Type Molded
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 10 A
Current - Saturation (Isat) 15.5A
Shielding Shielded
DC Resistance (DCR) 16.5mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.551" L x 0.504" W (14.00mm x 12.80mm)
Height - Seated (Max) 0.256" (6.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 553-3004-6,553-3004-2,553-3004-1,-PA4343.103NLT
Standard Package 500
Win Source Part Number 1178293-PA4343.103NLT
Ultra Librarian 3D Model Ultra Librarian PA4343.103NLT CAD Model

Description

The Pulse Electronics Power PA4343.103NLT is a molded type fixed inductor that is shielded to prevent interference.

  • Type: Molded
  • Shielding: Shielded
  • Tolerance: ±20%
  • AEC-Q200: Rated for AEC-Q200
  • Seated Height: 0.256 inches
  • Maximum DC Resistance: 16.5mOhm
  • Win Source Part Number: 1178293-PA4343.103NLT
  • Application: Designed for devices needing limited power supply
