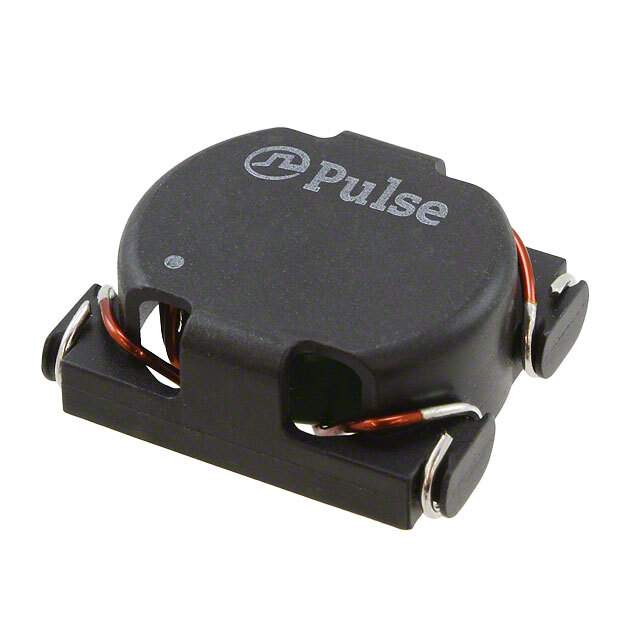

PA2757NL

Part No PA2757NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 9A 2LN SMD / 2 Line Common Mode Choke Surface Mount 9A DCR 9.75mOhm
Datasheet
PA2757NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Pulse Electronics
Packaging Tube
Number of Lines 2
Current Rating (Max) 9A
DC Resistance (DCR) (Max) 9.75mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting Surface Mount
Size / Dimension 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height (Max) 0.500" (12.70mm)
Case / Package Horizontal, 4 PC Pad
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number PA2757NL-ND,553-2195
Standard Package 20
Win Source Part Number 1328232-PA2757NL
Ultra Librarian 3D Model Ultra Librarian PA2757NL CAD Model

Description

The Pulse Electronics PA2757NL is a common mode choke filter with a horizontal, 4 PC pad case/package.

  • Size: 1.220" L x 1.000" W (30.99mm x 25.40mm)
  • Maximum Height: 0.500" (12.70mm)
  • Mounting: Surface mount
  • Current Rating: 9A
  • DC Resistance (DCR) (Max): 9.75mOhm
  • Temperature Range: -40°C ~ 130°C
  • RoHS compliant: Yes
