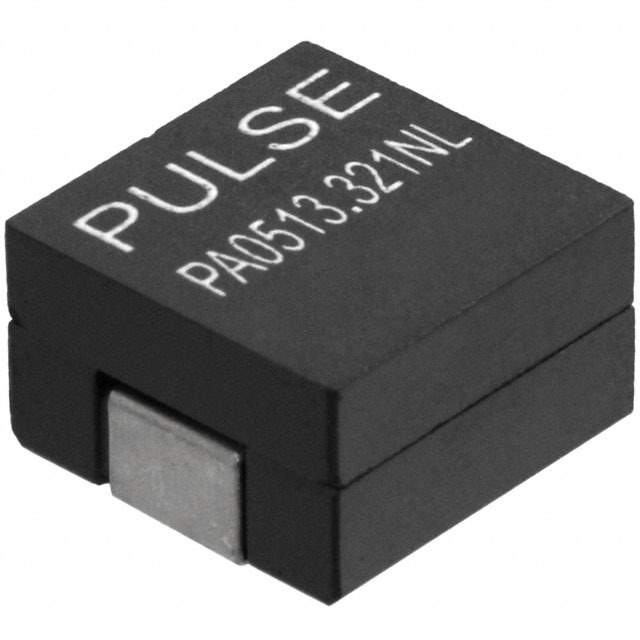

Same model may have multiple batches, images only for reference.

PA0513.321NLT

Name: PA0513.321NLT
Brand: Pulse
SKU: 502620
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PA0513.321NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 320NH 41A 0.32 MOHM
Datasheet	PA0513.321NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Pulse Electronics Corporation
Packaging	Reel - TR
Status	Active
Inductance	320nH
Tolerance	±20%
Current Rating	41A
Current - Saturation	50A
DC Resistance (DCR)	0.32 mOhm
Temperature Range - Operating	-40°C to 130°C
Mounting	SMD (SMT)
Height - Seated (Max)	0.315" (8.00mm)
Win Source Part Number	1086222-PA0513.321NLT
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PA0513.321NLT CAD Model

Alternative Products

Description

The Pulse Electronics Corporation inductor is a high-quality inductor designed for use in electronic devices that require efficient and reliable power transmission.

Current Rating: 41A
Inductance: 320nH
Mounting: SMD (SMT)
Tolerance: ±20%
Category: Inductors, Coils, Chokes
Status: Active
Supply and Demand: Balanced
Temperature Range: -40°C to 130°C
