Same model may have multiple batches, images only for reference.

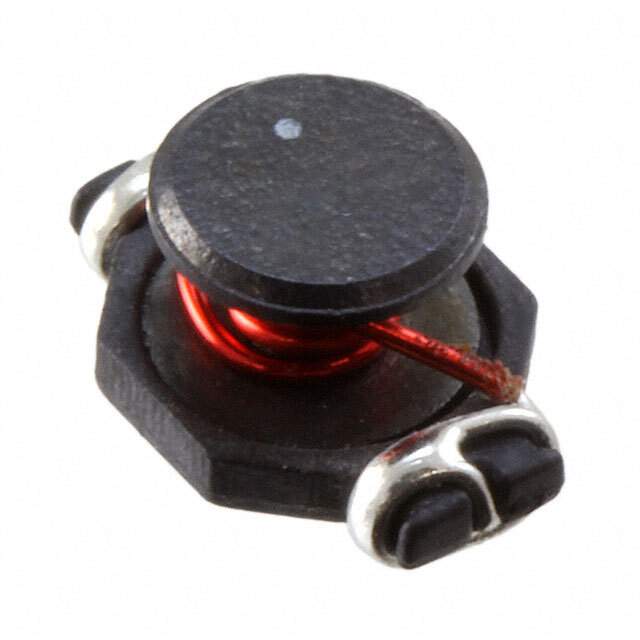

PA0390.471NLT Real Image
Same model may have multiple batches, images only for reference.

PA0390.471NLT

Part No PA0390.471NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 600NH 6A 9.7 MOHM SMD / Inductor Power Unshielded Wirewound 0.6uH 20% 100KHz 6A 0.0097Ohm DCR T/R
Datasheet
PA0390.471NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Series PA0390NL
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 600nH
Tolerance ±20%
Current Rating 6A
Current - Saturation 7.7A
Shielding Unshielded
DC Resistance (DCR) 9.7 mOhm Max
Operating Temperature Range -40°C ~ 130°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.350" L x 0.240" W (8.89mm x 6.10mm)
Height - Seated (Maximum) 0.200" (5.08mm)
Win Source Part Number 791331-PA0390.471NLT
Popularity Medium
Supply and Demand Status Balance
Family Name PA0390NL
Introduction Date October 17, 2007
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PA0390.471NLT CAD Model

Description

The Pulse Electronics Corporation wirewound inductor, part number 791331-PA0390.471NLT, is an unshielded surface mount device.

  • Current Rating: 6A
  • Inductance: 600nH
  • Tolerance: ±20%
  • DC Resistance (DCR): 9.7 mOhm Max
  • Dimensions: 0.350" L x 0.240" W (8.89mm x 6.10mm)
  • Category: Inductors, Coils, Chokes
  • RoHS Compliance: Compliant
  • Estimated EOL Date: 2027
  • Alternative Parts: UP1B-R47-R, SSL0503HC-R56M-N, DO1813P-561HC
  • Operating Temperature Range: -40°C ~ 130°C
