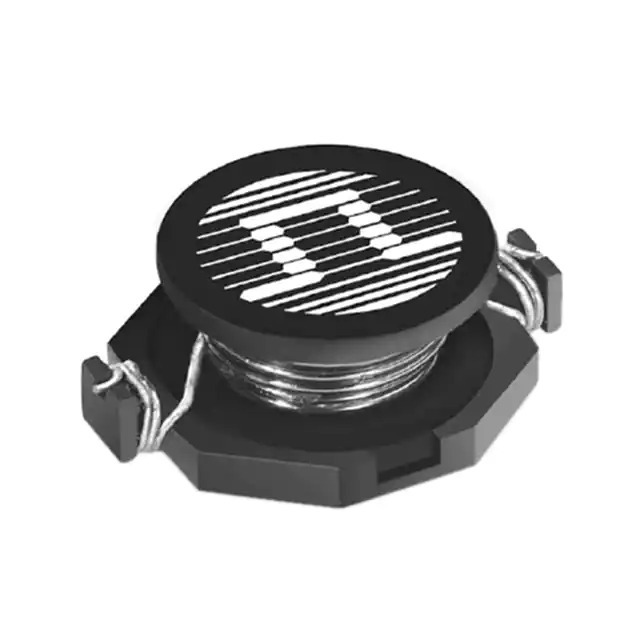

P0751.223NL Pulse
Same model may have multiple batches, images only for reference.

P0751.223NL

Part No P0751.223NL
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 22UH 2.6A 114 MOHM SMD
Datasheet
P0751.223NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse Electronics
Series P0751NL
Package Tray
Product Status Active
Type Wirewound
Material - Core -
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 2.6 A
Current - Saturation (Isat) 2.6A
Shielding Unshielded
DC Resistance (DCR) 114mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.510" L x 0.370" W (12.95mm x 9.40mm)
Height - Seated (Max) 0.215" (5.46mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1379404-P0751.223NL
Ultra Librarian 3D Model Ultra Librarian P0751.223NL CAD Model

Description

The P0751.223NL is a fixed inductor manufactured by Pulse Electronics.

  • Inductor Type: Wirewound
  • Inductance: 22µH
  • Current Rating: 2.6A
  • Mounting Type: Surface Mount
  • Package: Nonstandard
  • Size: 0.510" L x 0.370" W (12.95mm x 9.40mm)
  • Height: 0.215" (5.46mm)
  • DC Resistance: 114mOhm
  • Tolerance: ±20%
