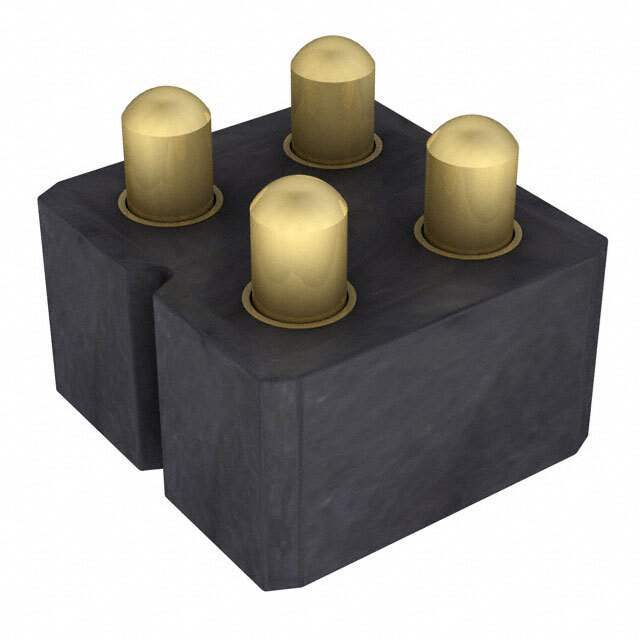

Same model may have multiple batches, images only for reference.
813-S1-010-30-017101 Preci-Dip
Same model may have multiple batches, images only for reference.

813-S1-010-30-017101

Part No 813-S1-010-30-017101
Manufacturer Preci-Dip
Catalog Rectangular Connectors
Description CONN SPRING PISTON 10POS SMD
Datasheet
813-S1-010-30-017101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1305280-813-S1-010-30-017101
Manufacturer Preci-Dip
Category Connectors, Interconnects-Rectangular Connectors-Spring Loaded
Packaging Bulk
Part Status Active
Connector Type Piston
Number of Contacts 10
Pitch (mm) 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian 813-S1-010-30-017101 CAD Model

Description

Low resistance modular connectors with spring-loaded contacts (SLC), surface mount. Contacts with improved, shaped piston design.
