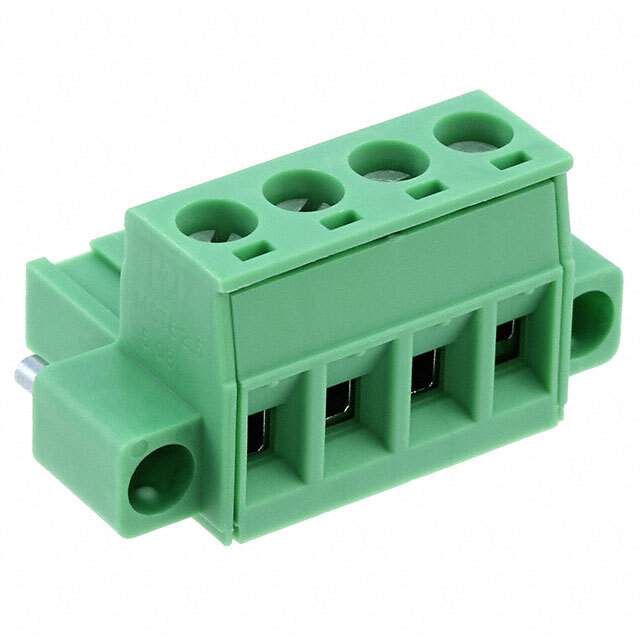

The Phoenix Contact Terminal Blocks are a set of connectors that feature plug female sockets with 4 positions per level and 4 levels.

• Manufacturer: Phoenix Contact
• Connector Type: Plug
• Socket Gender: Female
• Positions per Level: 4
• Levels: 4
• Pitch: 0.200" (5.08mm)
• Termination Style: Screw-Rising Cage Clamp
• Current Rating: 16A
• Voltage Rating: 630V (IEC) and 300V (UL)
• Wire Gauge or Range: 12-30 AWG and 0.2-2.5mm2
• Housing Material: Polyamide (PA), Nylon
• Material Flammability Rating: UL94 V-0
• Standard Package: 50
• Screw Size: M3
• Torque-Screw: 0.5-0.6 Nm (4.4-5.3 Lb-In)
• Insulation Height: 0.591" (15.00mm)
• Wire Strip Length: 7mm
• RoHS Compliant: Yes
