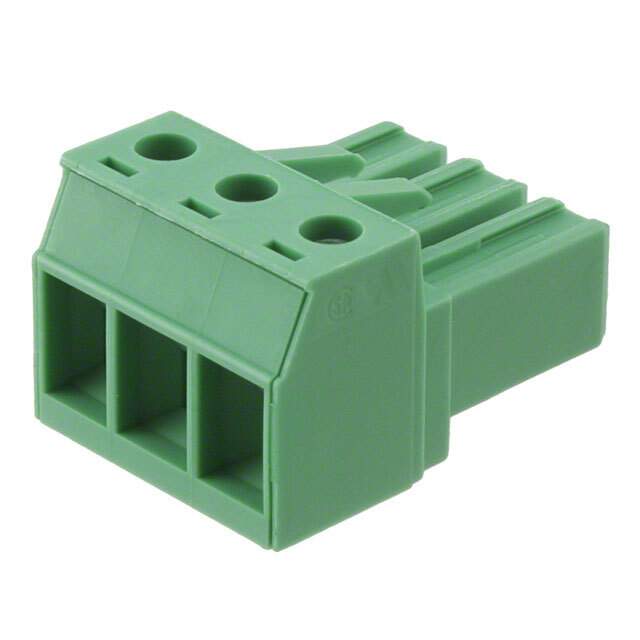

This terminal block header from Phoenix Contact is a high-quality connector that is perfect for use in a variety of applications.

• Type: Plug, female sockets
• Positions per Level: 3
• Levels: 3
• Pitch: 0.300" (7.62mm)
• Plug Wire Entry: 180°
• Termination Style: Screw-rising cage clamp
• Current Rating (IEC): 20A
• Voltage Rating (IEC): 1 kV
• Current Rating (UL): 5 A
• Voltage Rating (UL): 600 V
• Wire Gauge or Range: 10-30 AWG
• Wire Gauge or Range: 0.2-4mm²
• Color: Green
• Features: Retention latches (non-wire side)
• Contact Mating Finish: Tin
• Contact Material: Brass
• RoHS Compliant: Yes
• Torque Screw: 0.5-0.6 Nm (4.4-5.3 Lb-In)
• Insulation Height: 0.713" (18.10mm)
• Mounting: Free-hanging (in-line)
