1766385

Name: 1766385
Brand: Phoenix Contact
SKU: 1332265
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1766385
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets

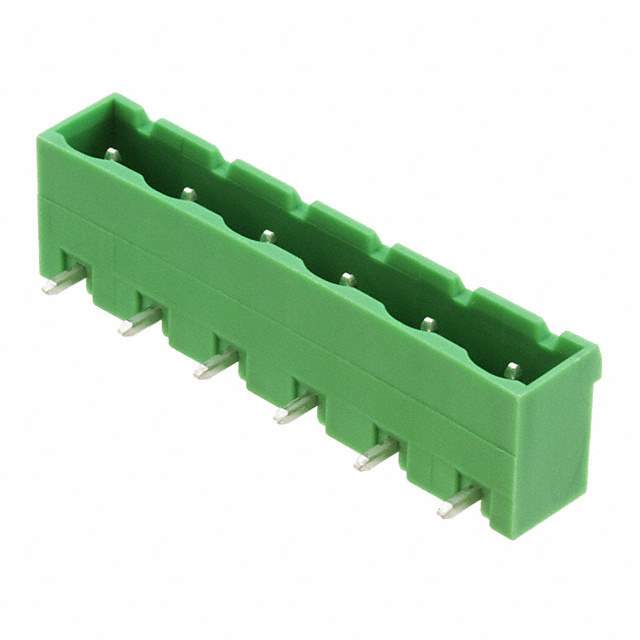

Description	TERM BLOCK HDR 6POS 90DEG 7.5MM / 6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.295" (7.50mm) 90°, Right Angle Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	6
Positions Per Level	6
Number of Levels	1
Pitch	0.295" (7.50mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting	Through Hole
Current - IEC	12A
Voltage - IEC	630 V
Current - UL	15 A
Voltage - UL	300 V
Color	Green
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Housing Material	Polyamide (PA), Nylon
Contact Tail Length	0.138" (3.50mm)
Insulation Height	0.339" (8.61mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	1766385-NDR,GMSTBA2,5/6-G,277-6387,1766385-ND
Standard Package	100
Win Source Part Number	1332265-1766385
Ultra Librarian 3D Model	Ultra Librarian 1766385 CAD Model

Description

The Phoenix Contact 1332265-1766385 is a header with male pins, suitable for connectors, interconnects, and terminal blocks.

Positions per Level: six
Levels: one
Pitch: 0.295 inches (7.50mm)
Header Orientation: 90 degrees, right angle
Termination Style: solder
Current Rating (IEC): 12A
Current Rating (UL): 15A
Voltage Rating (IEC): 630V
Voltage Rating (UL): 300V
Color: green
Contact Mating Finish: tin
Housing Material: polyamide (PA) or nylon
Material Flammability Rating: UL94 V-0
Mounting Type: through-hole
Insulation Height: 0.339 inches (8.61mm)
Contact Tail Length: 0.138 inches (3.50mm)
