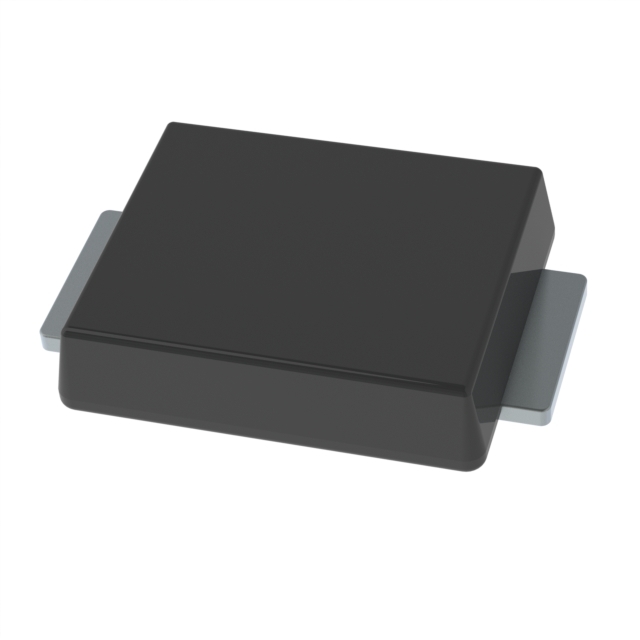

Same model may have multiple batches, images only for reference.
SR56F_R1_00001 Panjit – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SR56F_R1_00001

Part No SR56F_R1_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description Diode 60 V 5A Surface Mount SMBF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Panjit International Inc.
Packaging Reel - TR
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 60 V
Capacitance @ Vr, F 190pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-221AA, SMB Flat Leads
Supplier Device Package SMBF
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SR56
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1479175-SR56F_R1_00001
Ultra Librarian 3D Model Ultra Librarian SR56F_R1_00001 CAD Model
