Same model may have multiple batches, images only for reference.

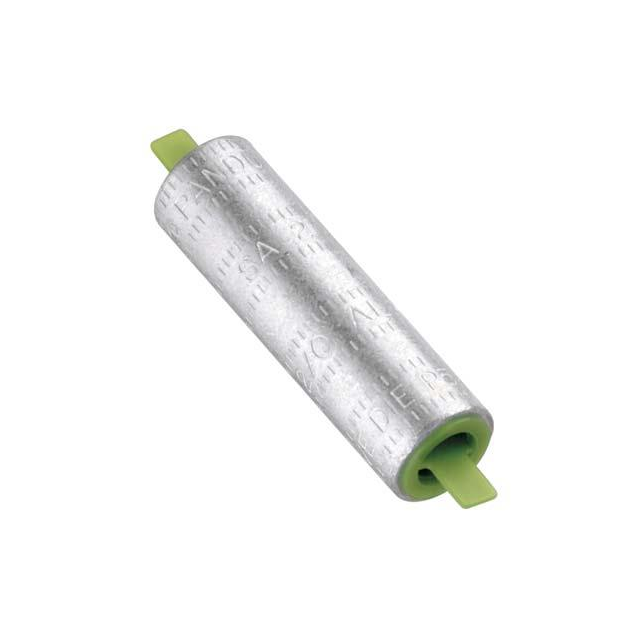

SA1000-1 Real Image
Same model may have multiple batches, images only for reference.

SA1000-1

Part No SA1000-1
Manufacturer Panduit Corp
Catalog Terminals
Datasheet
SA1000-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Wire Splice Connectors
Mfr Panduit Corp
Series Pan-Lug®
Package Bulk
Product Status Obsolete
Terminal Type Butt Splice, Inline, Individual Openings
Number of Wire Entries 2
Termination Crimp
Wire Gauge 1000MCM (kcmil)
Insulation Non-Insulated
Features Cap, Gel Filled
Color Brown
Base Product Number SA1000
Other Names 07498391290,-3255-SA1000-1
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285061-SA1000-1
Ultra Librarian 3D Model Ultra Librarian SA1000-1 CAD Model

Description

The SA1000-1 is a brown-colored wire splice connector from the Pan-Lug® series.

  • Type: Butt splice, inline, and individual openings
  • Insulation: Non-Insulated
  • Wire Entries: Two
  • Wire Gauge: Up to 1000MCM (kcmil)
  • Termination: Crimp
  • Features: Gel-filled
