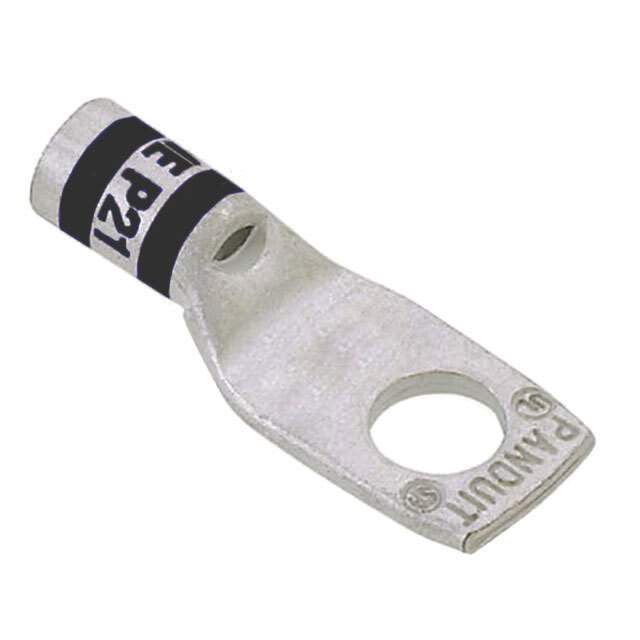

Same model may have multiple batches, images only for reference.

LCAX2/0-38-X

Get a Quote

Part No	LCAX2/0-38-X
Manufacturer	Panduit Corp
Catalog	Rectangular Connectors
Description	CONN TERM RECT TONG 2/0 AWG #3/8 / Terminal Connector Rectangular Rectangular Tongue 2/0 AWG 3/8 Stud
Datasheet	LCAX2/0-38-X Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Rectangular Connectors
Mfr	Panduit Corp
Series	Pan-Lug®
Package	Bulk
Terminal Type	Rectangular Tongue
Stud/Tab Size	3/8 Stud
Terminal Style	Single Stud Hole
Tab Thickness	0.130" (3.30mm)
Length - Overall	2.030" (51.56mm)
Width - Outer Edges	0.960" (24.38mm)
Mounting Type	Free Hanging (In-Line)
Termination	Crimp, Barrel
Wire Gauge	2/0 AWG
Insulation	Non-Insulated
Color	Black
Contact Finish	Electro-Tin
Contact Material	Copper
Diameter - Barrel ID	0.510" (12.95mm)
Diameter - Barrel OD	0.640" (16.26mm)
Diameter - Ring ID	0.410" (10.41mm)
Base Product Number	LCAX
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Other Names	298-11727,07498343539,LCAX2/0-38-X-ND
Standard Package	1
Win Source Part Number	975512-LCAX2/0-38-X
Ultra Librarian 3D Model	Ultra Librarian LCAX2/0-38-X CAD Model

Alternative Products

Description

The Win Source Part Number 975512-LCAX2/0-38-X is a black-colored rectangular connector suitable for use in various electronic devices.

Series: Pan-Lug®
Terminal Type: Rectangular tongue
Termination: Crimp, barrel
Contact Finish: Electro-tin
Insulation: Non-Insulated
Tab Thickness: 0.130" (3.30mm)
Barrel ID: 0.510" (12.95mm)
Barrel OD: 0.640" (16.26mm)
Wire Gauge: 2/0 AWG
Stud/Tab Size: 3/8 stud
Outer Edges Width: 0.960" (24.38mm)
Overall Length: 2.030" (51.56mm)
Mounting: Free hanging (in-line)
Manufacturer: Panduit Corp
Packaging: Bulk
REACH: Unaffected
HTSUS: 8536.90.4000
