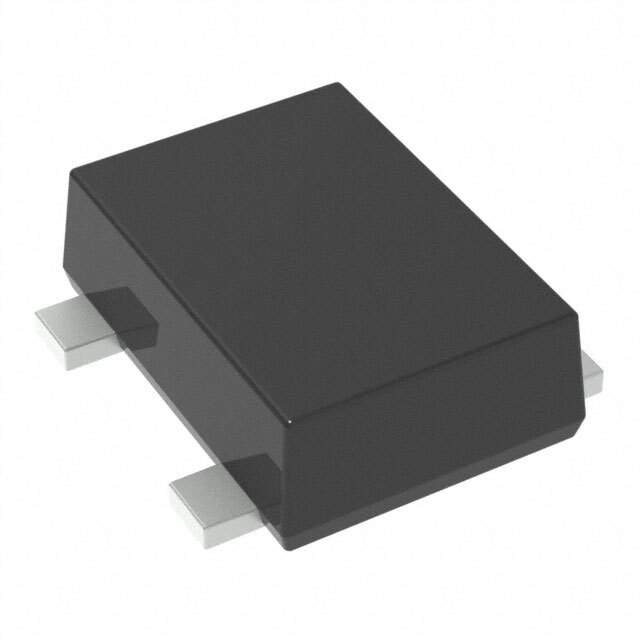

MA4SD1000L Real Image
Same model may have multiple batches, images only for reference.

MA4SD1000L

Part No MA4SD1000L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 20V SSMINI4
Datasheet
MA4SD1000L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Configuration 2 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) (per Diode) 200mA
Voltage - Forward (Vf) (Max) @ If 470mV @ 200mA
Reverse Recovery Time (trr) 3ns
Current - Reverse Leakage @ Vr 20μA @ 10V
Operating Temperature - Junction 125°C (Max)
Mounting SMD (SMT)
Case / Package SSMini4-F1
Win Source Part Number 109597-MA4SD1000L
Ultra Librarian 3D Model Ultra Librarian MA4SD1000L CAD Model

Description

The MA4SD1000L is a Schottky diode from Panasonic Electronic Components.

  • Voltage Rating: 20V
  • Forward Voltage: 470mV @ 200mA
  • Reverse Recovery Time (trr): 3ns
  • Current Rating: 200mA
  • Status: Active
  • Obsolete Status: EOL
  • Case / Package: SSMini4-F1
  • Mounting Type: SMD (SMT)
  • Diode Configurations: Two independent
