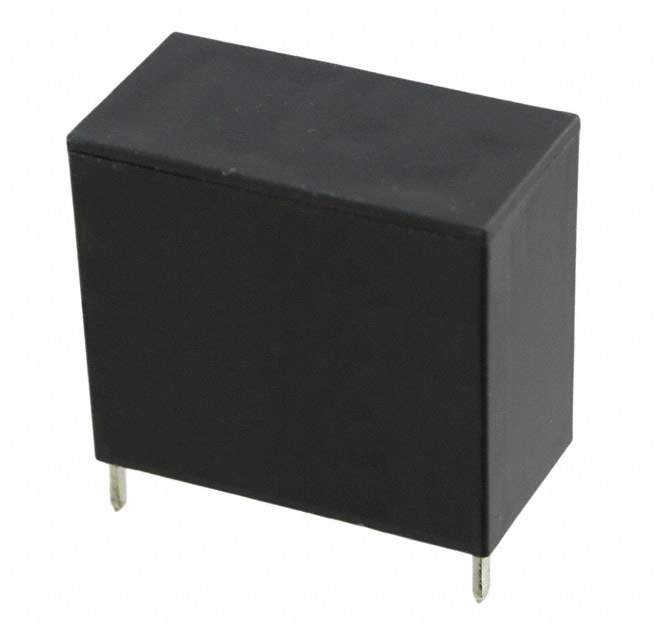

JM1AN-TMP-DC5V-F Real Image
Same model may have multiple batches, images only for reference.

JM1AN-TMP-DC5V-F

Part No JM1AN-TMP-DC5V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description Ideal for compressor and motor control Inrush 80A, 1a 20A power relay | RELAY GEN PURPOSE SPST 20A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete
Mounting Style Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 20A
Switching Voltage 250VAC - Max
Coil Current 180mA
Coil Type Non Latching
Termination Style PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating Sealed - Flux Protection
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 20ms
Release Time 10ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 27.8 Ohms
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1191606-JM1AN-TMP-DC5V-F
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JM1AN-TMP-DC5V-F CAD Model

Description

The Panasonic Electric Works JM1AN-TMP-DC5V-F is a high-quality electronic component that is designed to meet the needs of users who require an excellent performance and durability.

  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Win Source Part Number: 1191606-JM1AN-TMP-DC5V-F
  • Applications: Relays
