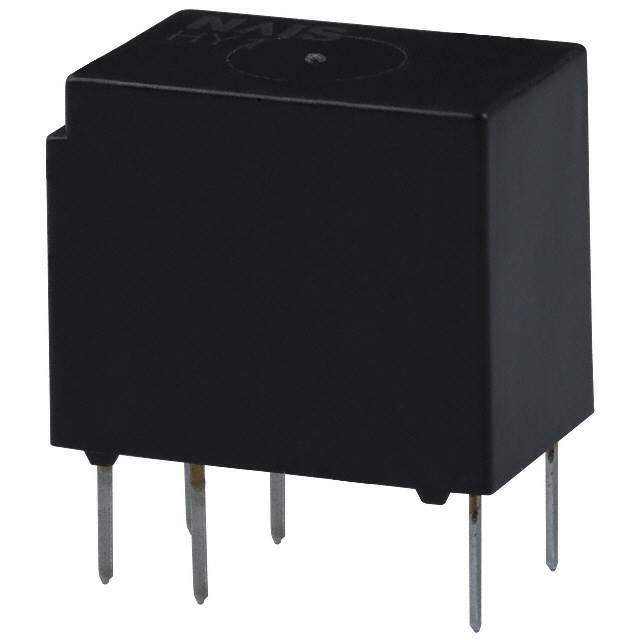

Same model may have multiple batches, images only for reference.

HY1-6V

Name: HY1-6V
Brand: Panasonic
SKU: 1323856
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	HY1-6V
Manufacturer	Panasonic
Catalog	Signal Relays, Up to 2 Amps
Description	RELAY TELECOM SPDT 1A 6VDC / Telecom Relay SPDT (1 Form C) Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Relays>Signal Relays, Up to 2 Amps
Manufacturer	Panasonic Electric Works
Packaging	Tube
Mounting	Through Hole
Coil Voltage	6VDC
Contact Form	SPDT (1 Form C)
Contact Rating (Current)	1 A
Switching Voltage	60VDC - Max
Coil Current	25 mA
Coil Type	Non Latching
Termination Style	PC Pin
Seal Rating	Sealed - Fully
Must Operate Voltage	4.5 VDC
Must Release Voltage	0.6 VDC
Operate Time	5 ms
Release Time	4 ms
Temperature Range - Operating	-40°C ~ 70°C
Contact Material	Silver (Ag), Gold (Au)
Relay Type	Telecom
Coil Resistance	240 Ohms
Base Product Number	HY1-6
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.41.0020
Other Part Number	HY1-6V-ND,255-4011-5,HY16V
Standard Package	50
Win Source Part Number	1323856-HY1-6V
Ultra Librarian 3D Model	Ultra Librarian HY1-6V CAD Model

Alternative Products

Description

The HY1-6V is a SPDT (1 Form C) non-latching telecom relay from Panasonic Electric Works.

Coil Voltage: 6VDC
Coil Resistance: 240 Ohms
Packaging: tube
Standard Package: 50
Switching Voltage: 60VDC - Max
Contact Rating (current): 1A
Seal Rating: sealed - fully seal
RoHS Compliant: true
MSL Level: 1 (Unlimited)
ECCN: EAR99
