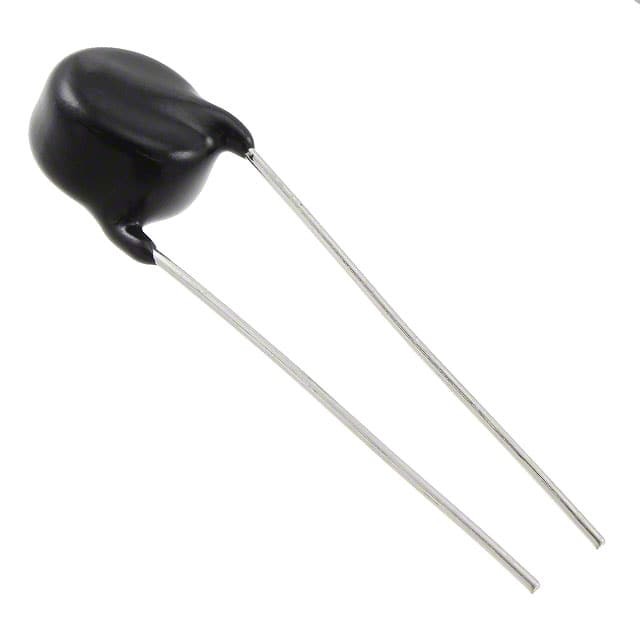

Same model may have multiple batches, images only for reference.
ERZ-E10A821
Same model may have multiple batches, images only for reference.

ERZ-E10A821

Part No ERZ-E10A821
Manufacturer Panasonic
Catalog TVS - Varistors, MOVs
Description VARISTOR 820V 4.5KA DISC 12.50MM / 820 V 4.5 kA Varistor 1 Circuit Through Hole Disc 12.50mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr Panasonic
Series ZNR®
Package Bulk
Product Status Active
Maximum AC Volts 510 V
Maximum DC Volts 670 V
Varistor Voltage (Min) 738 V
Varistor Voltage (Typ) 820 V
Varistor Voltage (Max) 902 V
Current - Surge 4.5 kA
Energy 154J
Number of Circuits 1
Capacitance @ Frequency 230 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case Disc 12.50mm
Base Product Number ERZ-E10
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 871094-ERZ-E10A821
Ultra Librarian 3D Model Ultra Librarian ERZ-E10A821 CAD Model

Description

The Panasonic ZNR series of varistors from offers reliable circuit protection against transient voltage surges.

  • Varistor Voltage Range: 738 V to 902 V
  • Capacitance: 230 pF @ 1 kHz
  • Surge Current: 4.5 kA
  • Maximum AC Voltage Rating: 510 V
  • Maximum DC Voltage Rating: 670 V
  • Mounting: Through-hole
  • Package: Disc package with a diameter of 12.50mm
  • Operating Temperature: -40°C to 85°C
  • Energy Absorption: 154J
