Same model may have multiple batches, images only for reference.

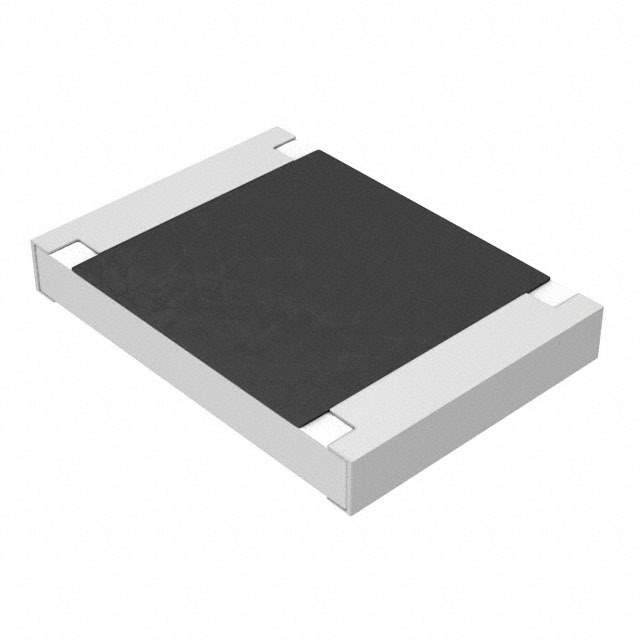

ERJ-L12KF20MU Real Image
Same model may have multiple batches, images only for reference.

ERJ-L12KF20MU

Part No ERJ-L12KF20MU
Manufacturer Panasonic
Catalog Chip Resistor - Surface Mount
Description RES 0.02 OHM 1% 1/2W 1812  /  20 mOhms ±1% 0.5W, 1/2W Chip Resistor 1812 (4532 Metric) Automotive AEC-Q200, Current Sense Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Panasonic Electronic Components
Series ERJ-L12
Package Tape & Reel
Resistance 20 mOhms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±300ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812
Ratings AEC-Q200
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number ERJ-L12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names P20NBDKR,P.020NBTR-ND,P20NBTR-NDR,P20NBCT-NDR,P.020NBCT,P.020NBCT-ND,ERJL12KF20MU,P.020NBTR,P20NBTR,P20NBCT
Standard Package 5,000
Win Source Part Number 1132639-ERJ-L12KF20MU
Ultra Librarian 3D Model Ultra Librarian ERJ-L12KF20MU CAD Model

Description

The ERJ-L12KF20MU is a surface mount chip resistor that belongs to the ERJ-L12 series of electronic components.

  • Type: Thick Film Resistor
  • Package/Case: 1812 (4532 Metric)
  • Resistance: 20 mOhms
  • Power Rating: 0.5W, 1/2W
  • Tolerance: ±1%
  • Temperature Coefficient: ±300ppm/°C
  • Features: Automotive AEC-Q200 and Current Sense
  • Package: Tape and Reel
  • Height: 0.028" (0.70mm)
  • Terminations: Two
  • Operating Temperature Range: -55°C ~ 125°C
