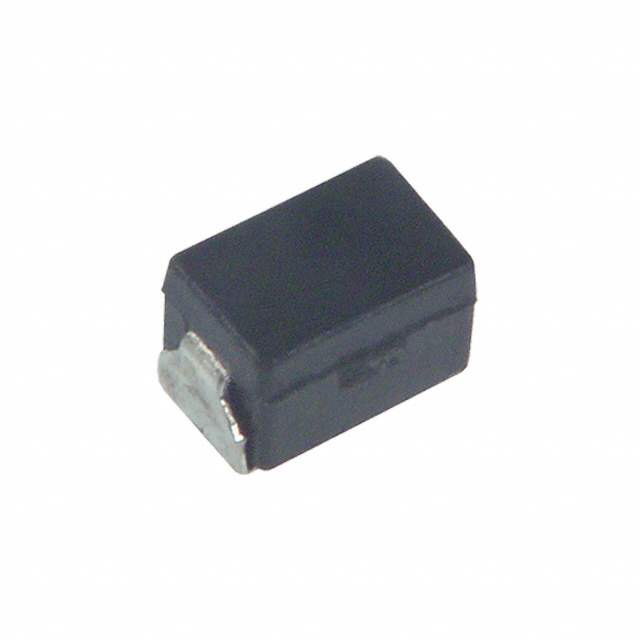

ELJ-PC120KF

Part No ELJ-PC120KF
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 12UH 195MA 2.7 OHM SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 12μH
Tolerance ±10%
Current Rating 195mA
DC Resistance (DCR) 2.7 Ohm Max
Q @ Freq 20 @ 2.52MHz
Frequency - Self Resonant 25MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 2.52MHz
Mounting SMD (SMT)
Case / Package 1008 (2520 Metric)
Height - Seated (Max) 0.071" (1.80mm)
Win Source Part Number 119045-ELJ-PC120KF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ELJ-PC120KF CAD Model

Description

Product Description

Designed for excellence, the ELJ-PC120KF component exemplifies top-tier electronic performance. Its engineering ensures superior function in demanding environments, making it a preferred choice for tech innovators.

Applications

  • Wireless Communication Devices
  • Power Management Systems
  • Data Processing Units
  • Smart Home Technology

Features and Benefits

  • Exceptional electrical tolerance
  • Optimized for thermal efficiency
  • Lightweight without compromising durability
  • Consistent performance over time

Additional Details

Integrating the ELJ-PC120KF into your project ensures a best-in-class solution that meets rigorous industry standards. Its resilience in variable conditions makes it indispensable for long-term applications.
