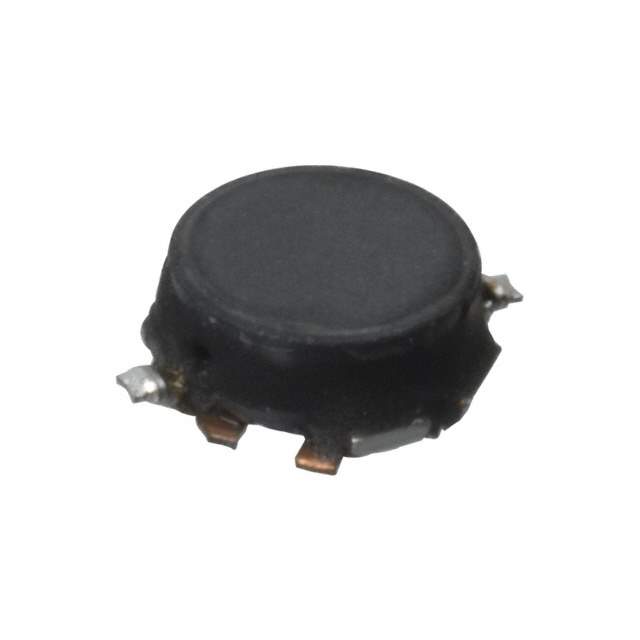

ELC-3GN470M Real Image
Same model may have multiple batches, images only for reference.

ELC-3GN470M

Part No ELC-3GN470M
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 47UH 240MA 1.95OHM SMD / 47 µH Unshielded Inductor 240 mA 1.95Ohm Nonstandard
Datasheet
ELC-3GN470M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Panasonic Electronic Components
Series N
Package Tape & Reel
Product Status Obsolete
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 240 mA
Shielding Unshielded
DC Resistance (DCR) 1.95Ohm
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.126" L x 0.126" W (3.20mm x 3.20mm)
Height - Seated (Max) 0.059" (1.50mm)
Base Product Number ELC-3GN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names PCD2059TR,ELC3GN470M,PCD2059DKR,PCD2059CT
Standard Package 2,000
Win Source Part Number 1123504-ELC-3GN470M
Ultra Librarian 3D Model Ultra Librarian ELC-3GN470M CAD Model

Description

The ELC-3GN470M is a fixed inductor manufactured by Panasonic Electronic Components.

  • Manufacturer: Panasonic Electronic Components
  • Inductance: 47 microhenries
  • Maximum Current Rating: 240mA
  • Tolerance: +/- 20%
  • DC Resistance: 1.95 ohms
