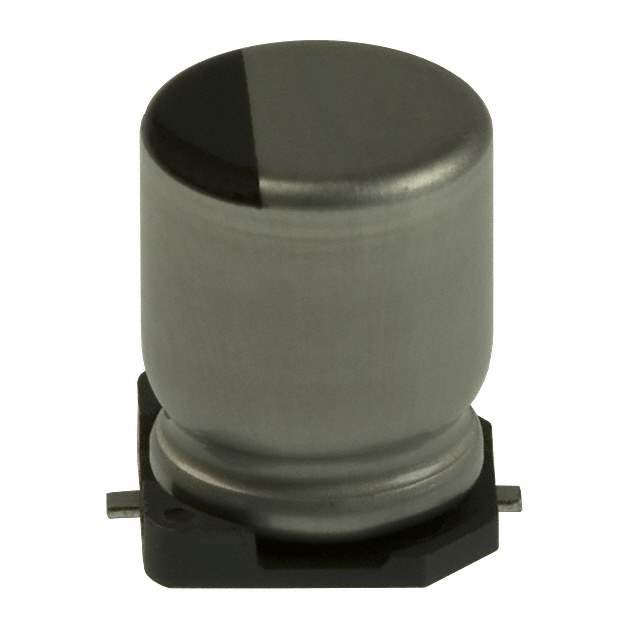

The EEE1EA331UP is an aluminum electrolytic capacitor manufactured by Panasonic. It is part of the EA series, known for its general-purpose applications and reliability in various electronic circuits. These capacitors are designed to offer a balance of performance characteristics, making them suitable for a wide range of uses.
Applications:
- General electronic circuits
- Power supplies
- Consumer electronics
- Industrial equipment
- Audio equipment
Features:
- High ripple current capability
- Long life
- Small size
- Wide operating temperature range
- RoHS compliant
Benefits:
- Provides stable and reliable performance in demanding applications.
- Reduces the number of components needed, saving space and cost.
- Extends the life of electronic devices.
- Helps reduce environmental impact.
Specifications:
The EEE1EA331UP features a capacitance of 330µF (microfarads) and a voltage rating of 25V (volts). Its operating temperature range typically spans from -40°C to +85°C, making it suitable for use in both cold and warm environments. The capacitor is designed for through-hole mounting. Its compact size allows it to be used in densely populated circuit boards. The ripple current rating is a significant feature, allowing it to handle high-frequency noise and current fluctuations, which is critical in power supply applications.
Panasonic's EEE series capacitors are constructed with high-quality materials and undergo rigorous testing to ensure they meet industry standards and performance requirements. This capacitor offers a reliable solution for smoothing, filtering, and energy storage in a wide array of electronic devices. The use of aluminum electrolytic technology provides a cost-effective and efficient means of achieving the desired capacitance and voltage ratings. Proper handling and soldering techniques are essential to ensure the longevity and optimal performance of this component.
