Same model may have multiple batches, images only for reference.

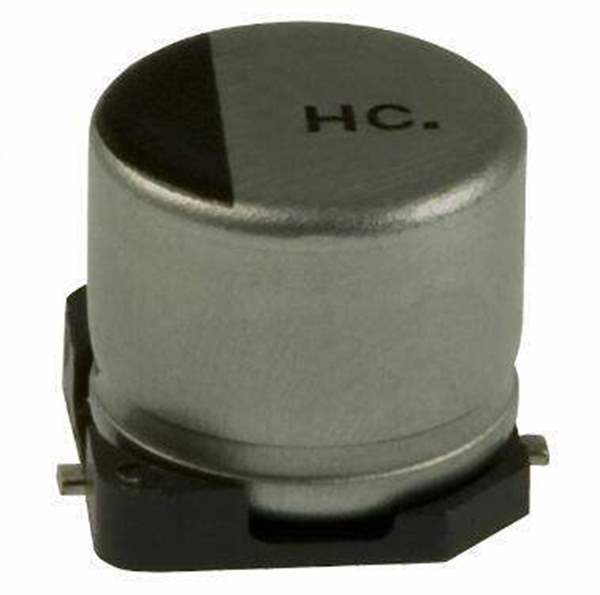

EEE-HC1C101XP

Name: EEE-HC1C101XP
Brand: Panasonic
SKU: WS1307629
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEE-HC1C101XP
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 16V SMD
Datasheet	EEE-HC1C101XP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Panasonic Electronic Components
Category	Capacitors Aluminum Electrolytic Capacitors
Part Status	Active
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ripple Current @ High Frequency	137.7 mA @ 10 kHz
Ripple Current @ Low Frequency	81 mA @ 120 Hz
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.303" (7.70mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Win Source Part Number	WS1307629-EEE-HC1C101XP
Ultra Librarian 3D Model	Ultra Librarian EEE-HC1C101XP CAD Model

Description

100 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C
