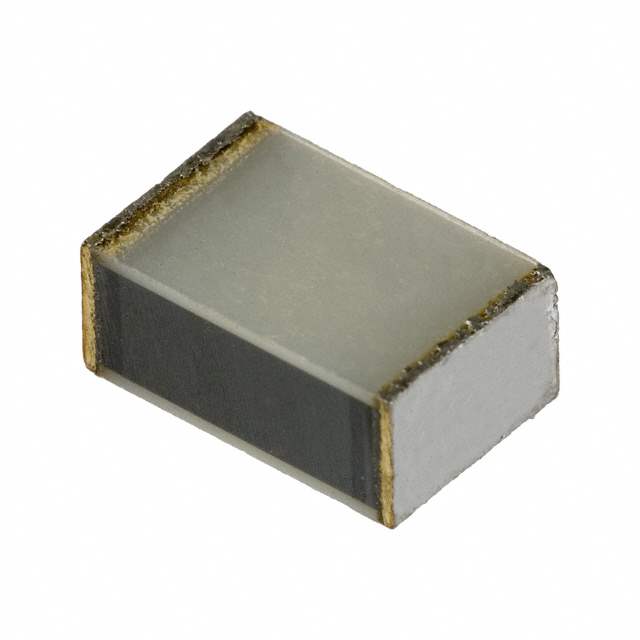

ECW-U1105KCV Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 1μF
Tolerance ±10%
Voltage Rating - DC 100V
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.386" L x 0.248" W (9.80mm x 6.30mm)
Height - Seated (Max) 0.209" (5.30mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 000989-ECW-U1105KCV
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian ECW-U1105KCV CAD Model

Description

ECW-U1105KCV - Versatile Film Capacitor

The ECW-U1105KCV is known for its versatility and superior reliability that enhances the performance of electronic projects.

  • Applications:
    • Microcontroller circuits
    • Switch-mode power supplies
    • Lighting ballasts
  • Features and Benefits:
    • Compact size
    • Long-term reliability
    • Excellent thermal stability
  • Additional Details:
    • Voltage rating: 250V
    • Capacitance: 0.5μF
    • Lead spacing: Standard
