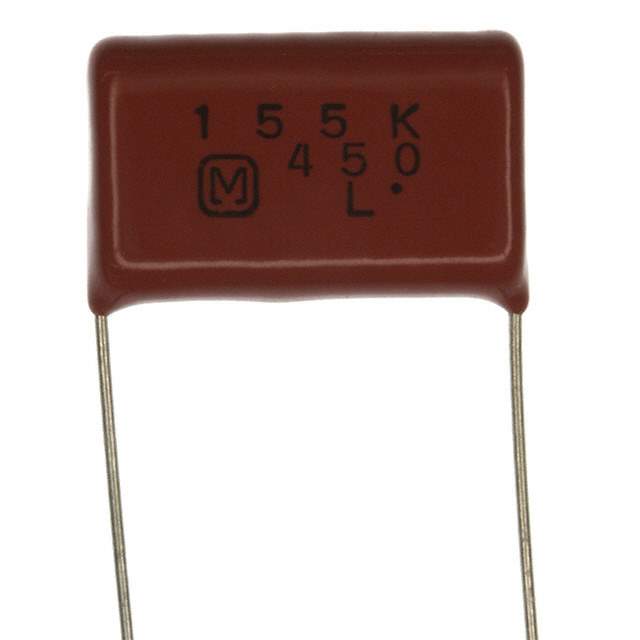

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Panasonic Electronic Components
Series ECQ-E(H)
Package Bulk
Capacitance 1.5 µF
Tolerance ±10%
Voltage Rating - DC 450V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.012" L x 0.323" W (25.70mm x 8.20mm)
Height - Seated (Max) 0.677" (17.20mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications EMI, RFI Suppression
Base Product Number ECQ-E2
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Win Source Part Number 1339155-ECQ-E2W155KH
Ultra Librarian 3D Model Ultra Librarian ECQ-E2W155KH CAD Model

Description

The Panasonic Electronic Components 1339155-ECQ-E2W155KH is a film capacitor that belongs to the ECQ-E(H) series.

  • Capacitance: 1.5 µF
  • Tolerance: ±10%
  • Voltage - Rated: 450V DC
  • Lead Spacing: 0.886" (22.50mm)
  • Package / Case: Radial
  • Size / Dimension: 1.012" L x 0.323" W (25.70mm x 8.20mm)
  • Height - Seated (Max): 0.677" (17.20mm)
  • Mounting Type: Through Hole
  • Packaging: Bulk
  • Series: ECQ-E(H)
  • Applications: EMI, RFI Suppression
