Same model may have multiple batches, images only for reference.

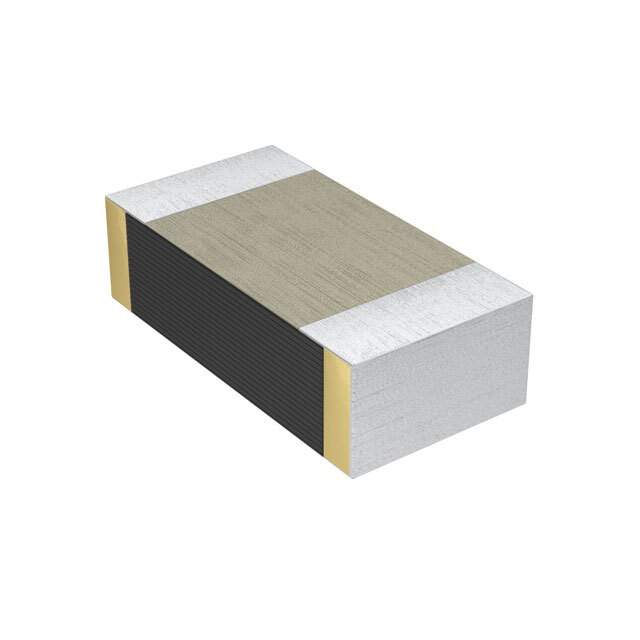

ECH-U1H472GX5 Real Image
Same model may have multiple batches, images only for reference.

ECH-U1H472GX5

Part No ECH-U1H472GX5
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 4700PF 2% 50VDC 1206 / 4700 pF Film Capacitor 30V 50V Polyphenylene Sulfide (PPS), Metallized - Stacked 1206 (3216 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Panasonic Electronic Components
Series ECH-U(X)
Package Tape & Reel
Capacitance 4700 pF
Tolerance ±2%
Voltage Rating - AC 30V
Voltage Rating - DC 50V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.043" (1.10mm)
Termination Solder Pads
Applications General Purpose
Base Product Number ECH-U1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names PCF1304TR-NDR,PCF1304CT,ECHU1H472GX5,PCF1304DKR,PCF1304CT-NDR,Q6751037,PCF1304TR
Standard Package 3,000
Win Source Part Number 1056774-ECH-U1H472GX5
Ultra Librarian 3D Model Ultra Librarian ECH-U1H472GX5 CAD Model

Description

The ECH-U1H472GX5 is a film capacitor manufactured by Panasonic Electronic Components.

  • Capacitance: It features a capacitance of 4700 pF
  • Tolerance: and a tolerance of ±2%.
  • Temperature Range: The ECH-U1H472GX5 is designed to operate in a temperature range of -55°C to 125°C.
  • Voltage Rating - DC: It has a voltage rating of 50V DC
  • Voltage Rating - AC: and 30V AC.
  • Package/Case: This capacitor is supplied in a 1206 (3216 Metric) package
  • Packaging: and is available in a tape and reel of 3000 units.
  • Termination: It has solder pads for termination
  • Application: and is ideal for use in various general-purpose electronic applications.
