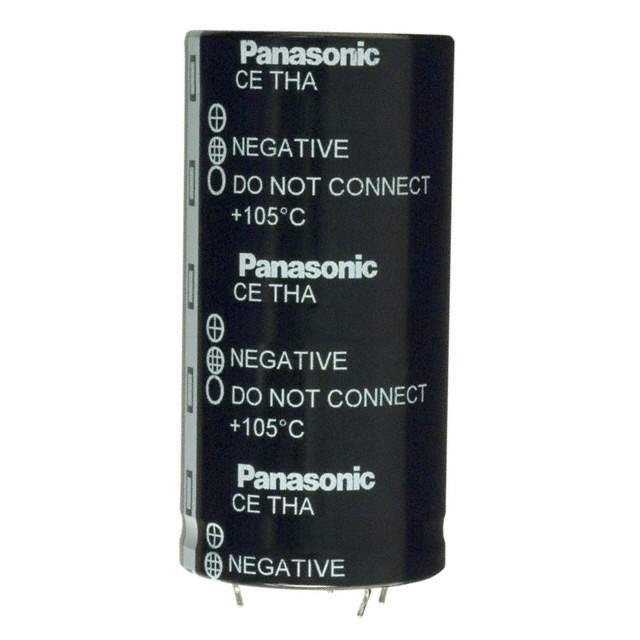

Same model may have multiple batches, images only for reference.

ECE-T1HA393FA

Get a Quote

Part No	ECE-T1HA393FA
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 39000UF 20% 50V SNAP
Datasheet	ECE-T1HA393FA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Panasonic Electronic Components
Series	T-HA
Packaging	Bulk
Part Status	Obsolete(EOL)
Capacitance	39000μF
Tolerance	±20%
Voltage Rating	50V
ESR (Equivalent Series Resistance)	14 mOhm
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature Range	-40°C ~ 105°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	7.55A @ 120Hz
Ripple Current - High Frequency	8.683A @ 10kHz
Lead Spacing	0.886" (22.50mm)
Dimension	1.575" Dia (40.00mm)
Height - Seated (Maximum)	3.150" (80.00mm)
Mounting Style	Through Hole
Package	Radial, Can - Snap-In - 4 Lead
Win Source Part Number	766699-ECE-T1HA393FA
Popularity	Medium
Supply and Demand Status	Limited
Family Name	T-HA
Introduction Date	December 20, 2007
ECCN	EAR99
Country of Origin	Malaysia
Estimated EOL Date	Obsolete
Ultra Librarian 3D Model	Ultra Librarian ECE-T1HA393FA CAD Model

Description

The ECE-T1HA393FA is a radial, can - snap-in - 4 lead capacitor from Panasonic Electronic Components.

Capacitance: 39000μF
Voltage Rating: 50V
Tolerance: ±20%
Lead Spacing: 0.886" (22.50mm)
ESR: 14 mOhm
Lifetime @ Temperature: 3000 Hrs @ 105°C
Polarization: Polar
Dimension: 1.575" Dia (40.00mm)
Ripple Current (Low Frequency): 7.55A @ 120Hz
Ripple Current (High Frequency): 8.683A @ 10kHz
Height Seated (Maximum): 3.150" (80.00mm)
Introduction Date: December 20, 2007
ECCN: EAR99
Country of Origin: Malaysia
