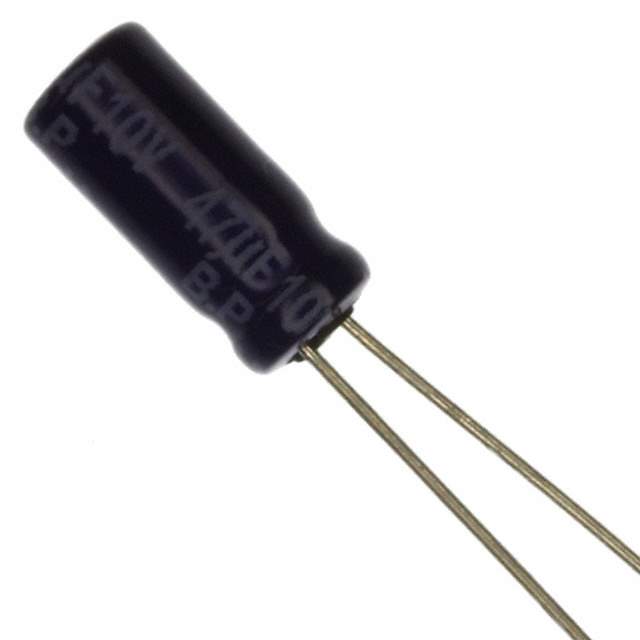

Same model may have multiple batches, images only for reference.

ECE-A1EN220X

Name: ECE-A1EN220X
Brand: Panasonic
SKU: 1001978
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ECE-A1EN220X
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 25V RADIAL / 22 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	SU
Package	Bulk
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	25 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Bi-Polar
Applications	General Purpose
Ripple Current @ Low Frequency	60 mA @ 120 Hz
Ripple Current @ High Frequency	102 mA @ 10 kHz
Lead Spacing	0.079" (2.00mm)
Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	ECE-A1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	ECEA1EN220X,P1177
Standard Package	200
Win Source Part Number	1001978-ECE-A1EN220X
Ultra Librarian 3D Model	Ultra Librarian ECE-A1EN220X CAD Model

Alternative Products

Description

The ECE-A1EN220X is a bi-polar aluminum electrolytic capacitor from Panasonic Electronic Components.

Capacitance: 22µF
Voltage Rating: 25V
Tolerance: ±20%
Height: 0.472 inches
Diameter: 0.197 inches
Application: General Purpose
Lifetime: 2000 hours @ 85°C
Package: Radial Can
Lead Spacing: 0.079 inches
REACH: REACH unaffected
Operating Temperature: -40°C to 85°C
