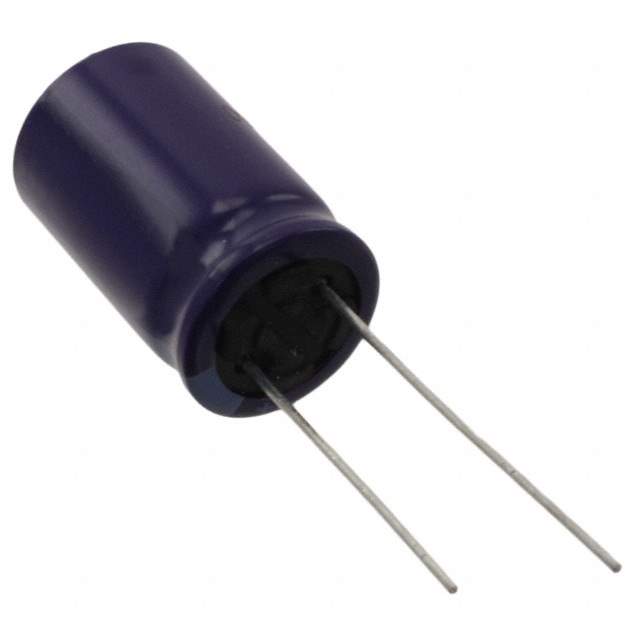

ECA-1JM102 Real Image
Same model may have multiple batches, images only for reference.

ECA-1JM102

Part No ECA-1JM102
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 63V RADIAL / 1000 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series M-A
Package Bulk
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.1 A @ 120 Hz
Ripple Current @ High Frequency 1.87 A @ 10 kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number ECA-1JM
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names P5197,ECA1JM102
Standard Package 100
Win Source Part Number 1186661-ECA-1JM102
Ultra Librarian 3D Model Ultra Librarian ECA-1JM102 CAD Model

Description

The ECA-1JM102 is a through-hole aluminum electrolytic capacitor from Panasonic Electronic Components.

  • Capacitance: 1000 µF
  • Voltage Rating: 63V
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 1.1 A @ 120 Hz
  • Ripple Current @ High Frequency: 1.87 A @ 10 kHz
  • Height: 1.063" (27.00mm)
  • Lead Spacing: 0.295" (7.50mm)
  • Temperature Range: -40°C ~ 85°C
  • Lifetime: 2000 Hrs @ 85°C
  • Package: Radial, Can
  • Standard Package: 100
  • ECCN: EAR99
  • REACH Status: REACH Unaffected
