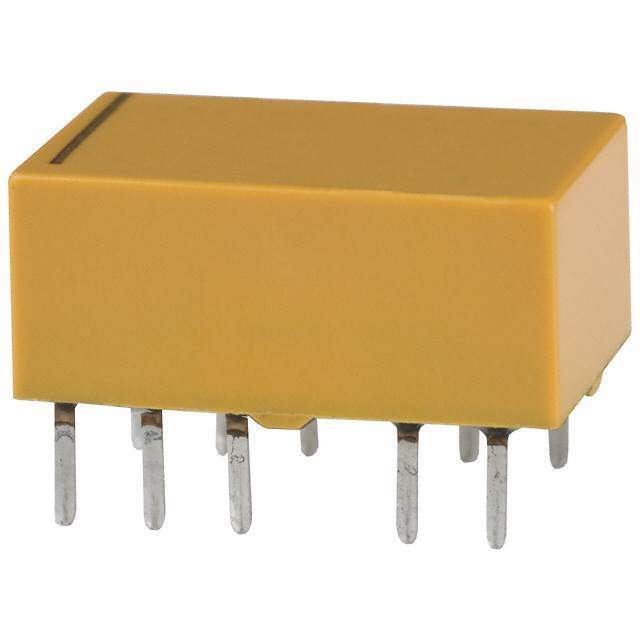

DF2E-L2-DC24V Real Image
Same model may have multiple batches, images only for reference.

DF2E-L2-DC24V

Part No DF2E-L2-DC24V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 1A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Latching, Dual Coil
Coil Current 8.3mA
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1A
Switching Voltage 125VAC, 60VDC - Max
Turn On Voltage (Max) 19.2 VDC
Operate Time 5ms
Release Time 3ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 200 mW
Coil Resistance 2.88 kOhms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 134785-DF2E-L2-DC24V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DF2E-L2-DC24V CAD Model

Description

Product Description

The DF2E-L2-DC24V is the ideal relay for projects necessitating a 24V DC input, known for its operational reliability and efficiency. This component is manufactured to exhibit enhanced performance even under high electrical loads.

Features and Benefits

  • Strong build quality ensures longevity and robust operation.
  • High voltage compatibility expands application range.
  • Quick response time for improved system performance.

Applications

  • Renewable energy systems
  • HVAC controls
  • Medical equipment

The DF2E-L2-DC24V relay is engineered to provide unmatched durability and effectiveness in a diverse set of applications, making it a preferable choice for technology developers.
