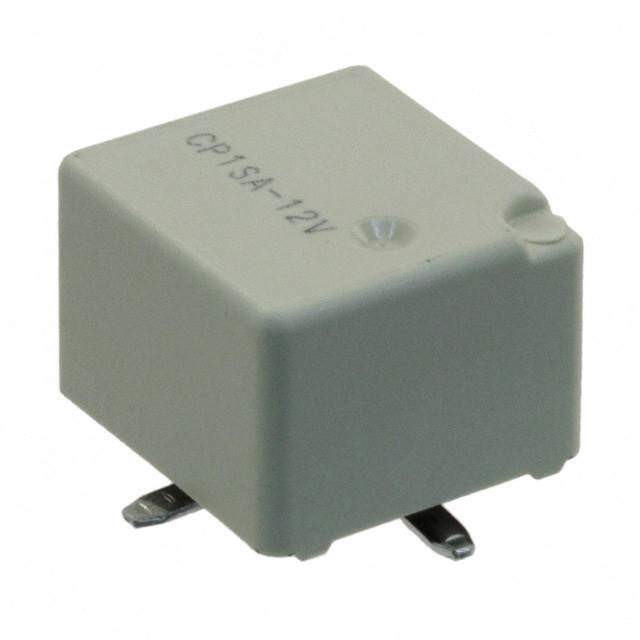

CP1SA-12V-Z Real Image
Same model may have multiple batches, images only for reference.

CP1SA-12V-Z

Part No CP1SA-12V-Z
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY AUTOMOTIVE SPDT 20A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Relay Type Automotive
Coil Type Non Latching
Coil Current 53.3mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 20A
Switching Voltage 14VDC - Nom
Turn On Voltage (Max) 7.2 VDC
Turn Off Voltage (Min) 1 VDC
Operate Time 10ms
Release Time 10ms
Features Sealed - Fully
Mounting SMD (SMT)
Termination Style SMD (SMT) Tab
Coil Power 640 mW
Coil Resistance 225 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 013248-CP1SA-12V-Z
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 300
Ultra Librarian 3D Model Ultra Librarian CP1SA-12V-Z CAD Model
