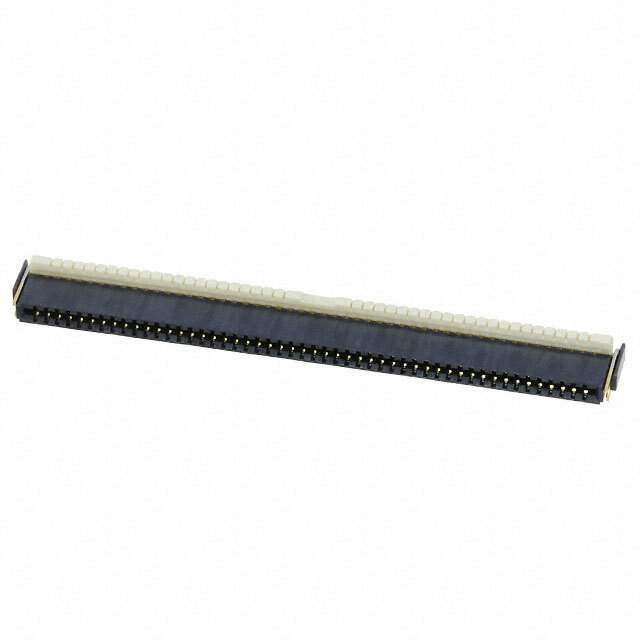

AYF535035A Real Image
Same model may have multiple batches, images only for reference.

AYF535035A

Part No AYF535035A
Manufacturer Panasonic
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC 50POS 0.50MM R/A / Conn FFC/FPC Connector SKT 50 POS 0.5mm Solder RA SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Series Y5B
Packaging Cut Strip
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 50
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Voltage Rating 50V
Operating Temperature Range -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A per Contact
Contact Finish Thickness Flash
Mating Cycles 20
Win Source Part Number 769393-AYF535035A
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Family Name AYF
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian AYF535035A CAD Model

Description

The Panasonic Electric Works Y5B series connector is a top and bottom contact type connector with 50 positions.

  • Pitch: 0.020 inches (0.50mm)
  • Temperature Range: -55°C to 85°C
  • Voltage Rating: 50V
  • Current Rating: 0.5A per contact
  • Contact Finish: Gold (Flash)
  • Contact Material: Copper Alloy
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Material Flammability Rating: UL94 V-0
  • Locking Feature: Flip lock, Backlock
  • Mounting: Surface Mount, Right Angle
  • Mating Cycle: 20
  • Flat Flex Types: FFC, FPC
