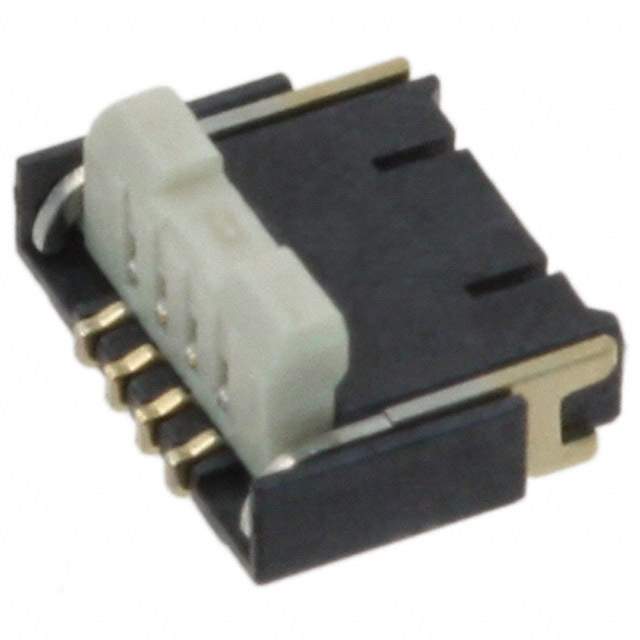

AYF530265TA Real Image
Same model may have multiple batches, images only for reference.

AYF530265TA

Part No AYF530265TA
Manufacturer Panasonic
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 2POS 0.50MM R/A  /  2 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Panasonic Electric Works
Series Y5BW
Package Strip
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 2
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock, Backlock
Cable End Type Notched
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A per Contact
Mating Cycles 20
Base Product Number AYF530265
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names AYF530265TA-ND,255-5403
Standard Package 500
Win Source Part Number 1180935-AYF530265TA
Ultra Librarian 3D Model Ultra Librarian AYF530265TA CAD Model

Description

This electronic component is a connector belonging to the Y5BW series and has a Win Source Part Number of 1180935-AYF530265TA manufactured by Panasonic Electric Works.

  • Positions: 2
  • Pitch: 0.020" (0.50mm)
  • Termination: solder
  • Contact Finish: gold
  • Package: strip
  • Contact Material: copper alloy
  • Voltage Rating: 50V
  • Height Above Board: 0.039" (1.00mm)
  • Flat Flex Type: FPC
  • Connector/Contact Type: contacts, top and bottom
  • FFC, FCB Thickness: 0.30mm
  • Locking Feature: flip lock, backlock
  • Cable End Type: notched
  • Housing Material: liquid crystal polymer (LCP)
  • Actuator Material: liquid crystal polymer (LCP)
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 500 units
  • Mating Cycles: 20
  • Mounting Technology: surface mount, right angle
  • Operating Temperature Range: -55°C ~ 85°C
  • MSL Level: 1 (Unlimited)
  • Current Rating: 0.5A per contact
  • HTSUS Code: 8536.69.4051
