Same model may have multiple batches, images only for reference.

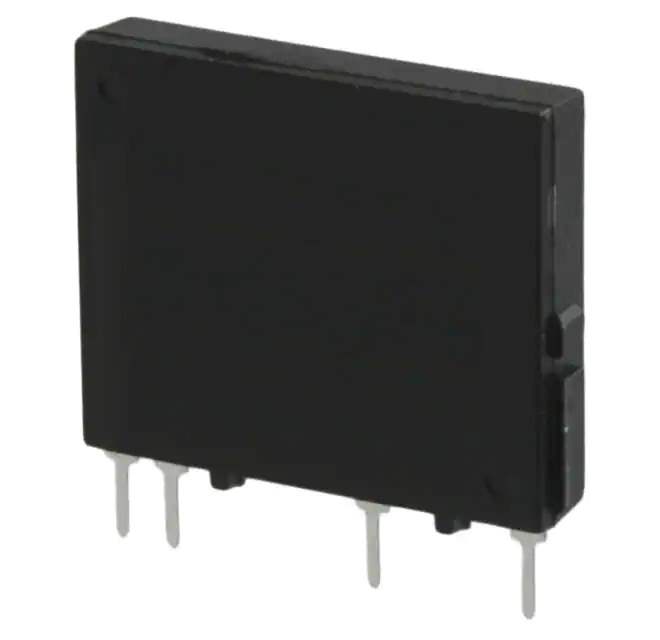

AQG22112 Real Image
Same model may have multiple batches, images only for reference.

AQG22112

Part No AQG22112
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 2A 75-264V / Solid State SPST-NO (1 Form A) 4-SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series AQ-G
Package Bulk
Product Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Voltage - Input 9.6 ~ 14.4VDC
Voltage - Load 75 V ~ 264 V
Load Current 2 A
Termination Style PC Pin
Package / Case 4-SIP
Supplier Device Package 4-SIP
Base Product Number AQG221
Standard Package 20 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 564322-AQG22112
Ultra Librarian 3D Model Ultra Librarian AQG22112 CAD Model

Description

The AQ-G AQG22112 is a solid state relay designed for high-performance switching applications.

  • Termination Style: PC pin
  • Package: Through-hole
  • Voltage Input Range: 9.6V to 14.4VDC
  • Output Type: AC zero-cross
  • Circuit Configuration: SPST-NO (1 Form A)
  • Load Current: 2A
  • Voltage Load Range: 75V to 264V
  • Suitable for: industrial control systems and automation equipment
  • Manufacturer: Panasonic
  • Series: AQ-G
  • Status: Active
