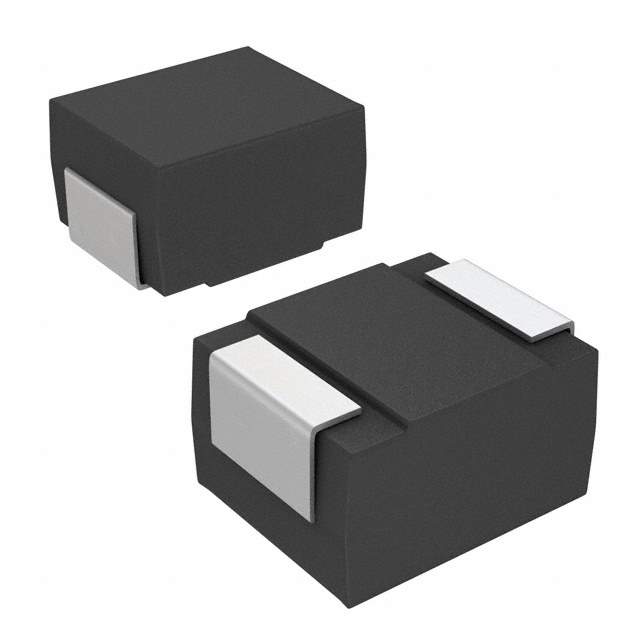

20TQC22MYFB Real Image
Same model may have multiple batches, images only for reference.

20TQC22MYFB

Part No 20TQC22MYFB
Manufacturer Panasonic
Catalog Tantalum - Polymer Capacitors
Description Polymer Tantalum Capacitors 22UF 20V 1411
Datasheet
20TQC22MYFB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 22μF
Tolerance ±20%
Voltage Rating 20V
Type Molded
ESR 80 mOhm
Temperature Range - Operating -55°C to 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD (SMT)
Dimension 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Max) 0.079" (2.00mm)
Manufacturer Size Code B2
Features General Purpose
Win Source Part Number 1003071-20TQC22MYFB
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian 20TQC22MYFB CAD Model

Description

The 1003071-20TQC22MYFB is a molded type capacitor manufactured by Panasonic Electronic Components.

  • Capacitance: 22μF
  • Tolerance: ±20%
  • Voltage Rating: 20V
  • ESR: 80 mOhm
  • Packaging: Reel
  • Mounting: SMD (SMT)
  • Height (Seated): 0.079" (2.00mm)
  • Dimensions: 0.138" L x 0.110" W (3.50mm x 2.80mm)
  • Operating Temperature: -55°C to 105°C
  • Lifetime: 2000 Hrs @ 105°C
