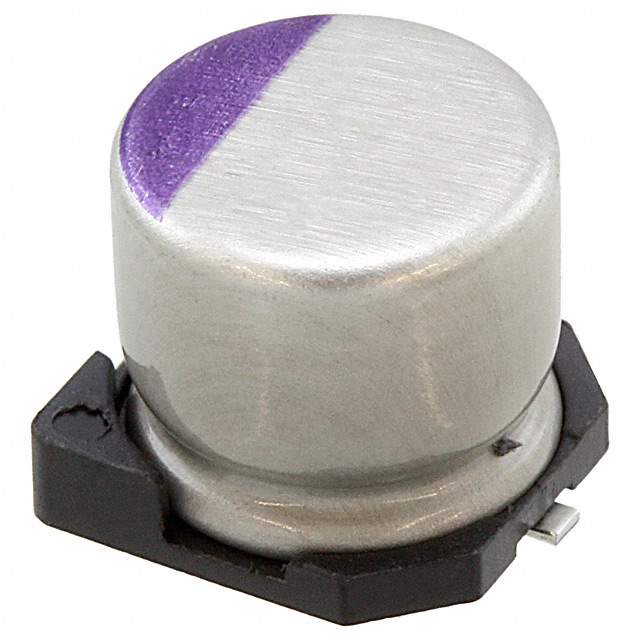

Same model may have multiple batches, images only for reference.

16SVPC100M

Name: 16SVPC100M
Brand: Panasonic
SKU: 415973
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	16SVPC100M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 100UF 20% 16V SMD
Datasheet	16SVPC100M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Status	Active
Type	Polymer
Capacitance	100μF
Tolerance	±20%
Voltage Rating	16V
ESR	24 mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C to 105°C
Ripple Current - Low Frequency	124.5mA @ 120Hz
Ripple Current - High Frequency	2.49A @ 100kHz
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting	SMD (SMT)
Dimension	Radial, Can - SMD
Win Source Part Number	1001677-16SVPC100M
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	1k pcs
Ultra Librarian 3D Model	Ultra Librarian 16SVPC100M CAD Model

Description

The Panasonic Electronic Components 16SVPC100M is a surface mount polymer capacitor manufactured by Panasonic Electronic Components.

Mounting Type: Surface Mount
Capacitance: 100μF
Voltage Rating: 16V
Tolerance: ±20%
ESR: 24mΩ
Ripple Current: 124.5mA @ 120Hz, 2.49A @ 100kHz
Lifetime: 2000 hours @ 105°C
Packaging: Reel - TR
Supply and Demand Status: In Balance
Package Quantity: 1k pcs
