Same model may have multiple batches, images only for reference.

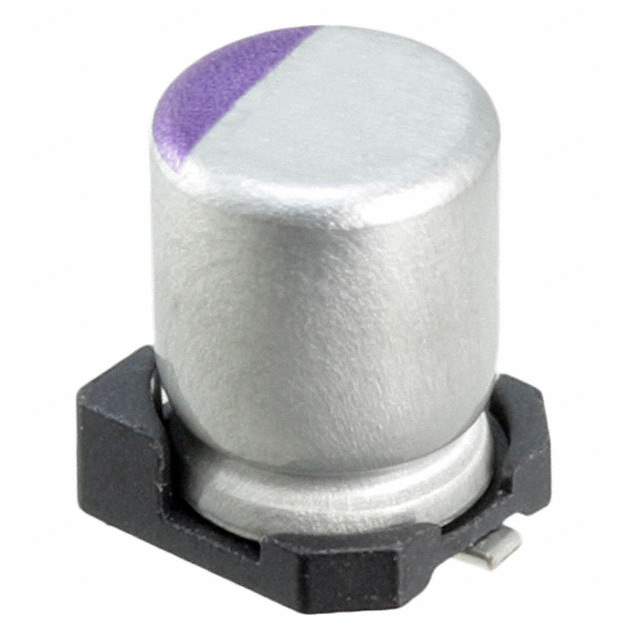

10SVP4R7M Real Image
Same model may have multiple batches, images only for reference.

10SVP4R7M

Part No 10SVP4R7M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description 4. SPECIFICATIONS FOR EACH SERIES | CAP ALUM POLY 4.7UF 20% 10V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel
Type Polymer
Capacitance 4.7μF
Tolerance ±20%
Voltage - Rated 10V
ESR (Equivalent Series Resistance) 240mOhm
Lifetime at Temp. 2000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current at Low Frequency 33.5mA at 120Hz
Ripple Current at High Frequency 670mA at 100kHz
Parts Dimension 0.157" Dia (4.00mm)
Height - Seated (Maximum) 0.217" (5.50mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1121085-10SVP4R7M
Manufacturer Homepage www.ssdc-jp.com/eng/
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 10SVP4R7M CAD Model

Description

The Panasonic Electronic Components 1121085-10SVP4R7M is a polymer capacitor with a capacitance of 4.7μF and a tolerance of ±20%.

  • Capacitance: 4.7μF
  • Tolerance: ±20%
  • Use: General Purpose
  • Voltage Rating: 10V
  • Package: Reel
  • Surface Mount Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
  • ESR (Equivalent Series Resistance): 240mOhm
  • Ripple Current (Low Frequency): 33.5mA
  • Ripple Current (High Frequency): 670mA
  • Operating Temperature Range: -55°C to 105°C
  • Supply and Demand Status: Balanced
