Same model may have multiple batches, images only for reference.

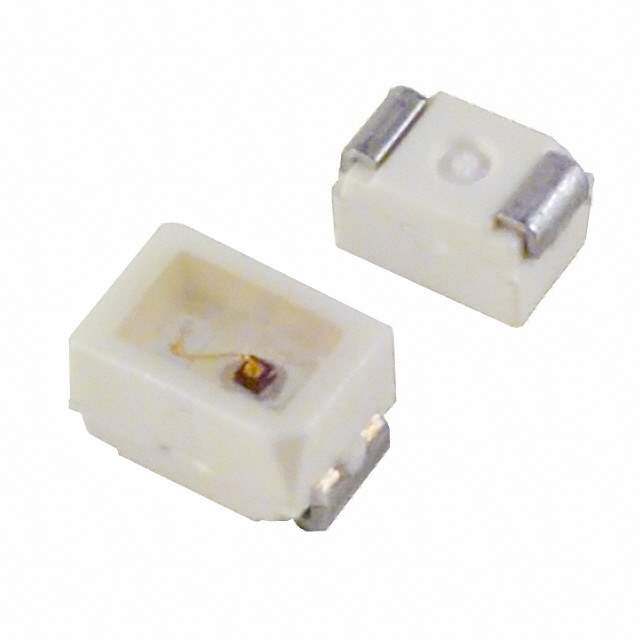

LY M67F-T2V2-36-1-20-R18-Z Real Image
Same model may have multiple batches, images only for reference.

LY M67F-T2V2-36-1-20-R18-Z

Part No LY M67F-T2V2-36-1-20-R18-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Indication - Discrete
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr ams-OSRAM USA Inc.
Series Mini TOPLED®
Package Tape & Reel
Product Status Last Time Buy
Color Yellow
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 737.5mcd
Lens Style Rectangle with Flat Top
Lens Size 1.50mm x 1.00mm
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 590nm
Wavelength - Peak 597nm
Package / Case 2-SMD, J-Lead
Supplier Device Package SMD
Dimension 2.00mm L x 1.40mm W
Height (Max) 1.40mm
Base Product Number LYM67F
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1314649-LY M67F-T2V2-36-1-20-R18-Z
Ultra Librarian 3D Model Ultra Librarian LY M67F-T2V2-36-1-20-R18-Z CAD Model

Description

The Mini TOPLED® series yellow LED indication discrete component is available in tape and reel packaging. It has a standard configuration and a viewing angle of 120°. The lens color is colorless and has a clear transparency.

  • Configuration: Standard
  • Packaging: Tape & Reel
  • Viewing Angle: 120°
  • Lens Color: Colorless
  • Lens Transparency: Clear
  • Millicandela Rating: 737.5mcd
  • Voltage-Forward (Vf) (Typ): 2.2V (Typ)
  • Current-Test: 20mA
  • Wavelength-Dominant: 590nm
  • Wavelength-Peak: 597nm
  • Height (Max): 1.40mm
  • Mounting Type: SMD (SMT)
  • Package / Case: 2-SMD, J-Lead
  • Supplier Device Package: SMD
  • Lens Style: Rectangle with Flat Top
  • Lens Size: 1.50mm x 1.00mm
  • REACH: Unaffected
  • ECCN: EAR99
