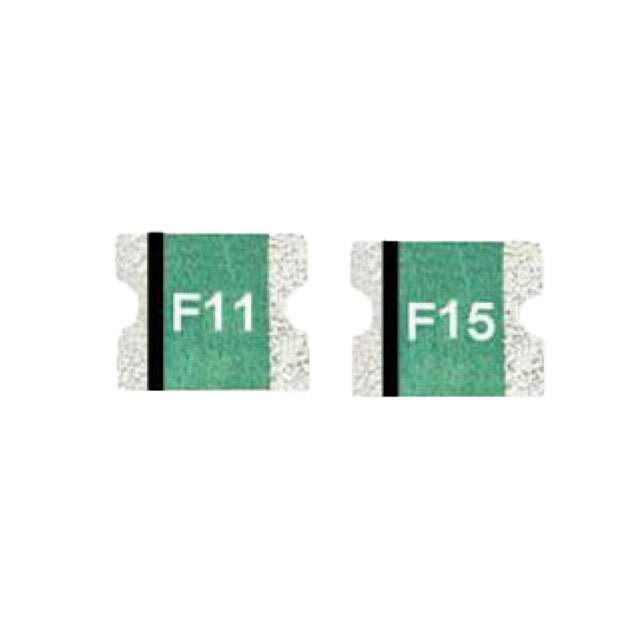

R1206-005-R Real Image
Same model may have multiple batches, images only for reference.

R1206-005-R

Part No R1206-005-R
Manufacturer OptiFuse
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 60V 50MA 1206 / Polymeric PTC Resettable Fuse 60V 50 mA Ih Surface Mount 1206 (3216 Metric), Concave
Datasheet
R1206-005-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr OptiFuse
Series R1206
Package Tape & Reel (TR)
Type Polymeric
Voltage - Max 60V
Current - Max 100 A
Current - Hold (Ih) (Max) 50 mA
Current - Trip (It) 150 mA
Time to Trip 1.5 s
Resistance - Initial (Ri) (Min) 3.6 Ohms
Resistance - Post Trip (R1) (Max) 50 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric), Concave
Dimension 0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness (Max) 0.033" (0.85mm)
Approval Agency cUL, TUV, UL
Base Product Number R1206
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8535.10.0040
Other Names 2298-R1206-005-RTR
Standard Package 3,000
Win Source Part Number 1135024-R1206-005-R
Ultra Librarian 3D Model Ultra Librarian R1206-005-R CAD Model

Description

The R1206-005-R is a polymeric PTC resettable fuse component that is part of the R1206 series.

  • Voltage Max: 60V
  • Current Max: 100 A
  • Current Hold: 50 mA
  • Current Trip: 150 mA
  • Time to Trip: 1.5 s
  • Package: Tape & Reel (TR)
  • Mounting Type: SMD
  • Temperature Range: -40°C ~ 85°C
  • Dimension: 0.128" L x 0.065" W (3.25mm x 1.65mm)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8535.10.0040
  • Standard Package: 3,000
