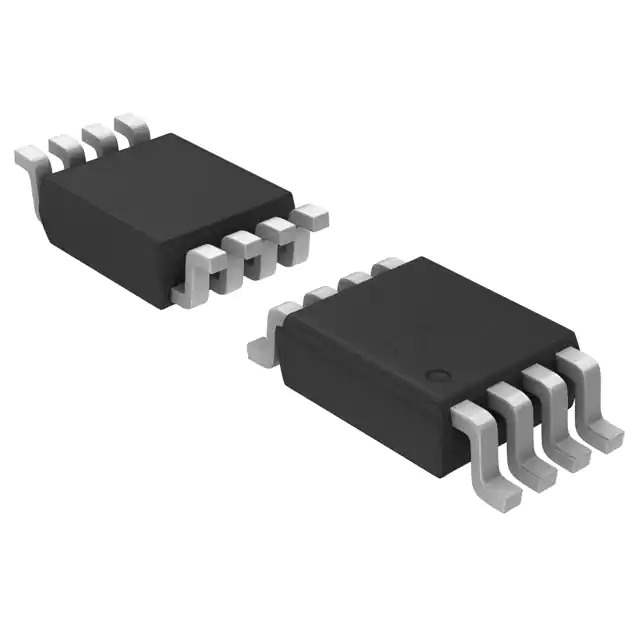

ON Semiconductor NL17SZ74US Flip-Flop

The ON Semiconductor NL17SZ74US is a high-performance, single D-type flip-flop with a direct clear input, designed for use in a wide array of applications ranging from consumer electronics to sophisticated industrial systems. This compact and efficient device is part of ON Semiconductor's extensive logic family and is a testament to the company's commitment to providing innovative solutions to meet the evolving needs of the electronics industry.

Key Features

• High-Speed Operation: The NL17SZ74US is capable of toggling at very high frequencies, making it suitable for high-speed data processing and communication systems.
• Low Power Consumption: Engineered for energy efficiency, this flip-flop has a low power dissipation, which is critical for battery-operated and power-sensitive applications.
• Single Supply Voltage: It operates on a wide range of supply voltages from 1.65V to 5.5V, providing design flexibility for various circuit configurations.
• Direct Clear Input: The inclusion of a direct clear input allows for immediate resetting of the flip-flop, enhancing the control over data operations.

Applications

The versatility of the NL17SZ74US allows it to be integrated into a multitude of electronic systems, including:

• Communication devices
• Data storage equipment
• Computers and computer peripherals
• Portable electronics
• Control systems

Technical Specifications

With a robust set of technical attributes, the NL17SZ74US is engineered for reliability and performance:

• Package: US8
• Temperature Range: -40°C to +85°C
• Output Drive Capability: 8 mA
• Setup Time: Specified at 3.3V, 5V, and 5.5V
• ESD Performance: HBM > 2000V; Machine Model > 200V

In summary, ON Semiconductor's NL17SZ74US is a sophisticated and reliable component that is ideal for designers looking for a high-speed, low-power, and versatile D-type flip-flop. Its direct clear feature and compatibility with various supply voltages make it an excellent choice for a broad range of applications.
