ON Semiconductor NCP380HMUAJAATBG - Overcurrent Protection Device

The NCP380HMUAJAATBG from ON Semiconductor is a state-of-the-art overcurrent protection device designed to enhance the safety and reliability of consumer electronics. This high-performance current limiter is specifically engineered to prevent damage to host devices caused by excessive currents, making it an essential component for a wide range of applications.

Key Features

• Current Limiting: The device offers adjustable current limiting functionality, allowing designers to set the threshold to the desired level for their specific application.
• High-Side Power Distribution Switch: This feature ensures that the power distribution is managed efficiently, with minimal power loss and optimal distribution to various parts of the circuit.
• Thermal Shutdown Protection: The NCP380HMUAJAATBG includes a thermal shutdown mechanism that triggers in the event of excessive heat, thereby protecting the circuitry from thermal damage.
• Under-Voltage Lockout (UVLO): The UVLO feature prevents the device from operating at dangerously low voltages, which could potentially cause erratic behavior or damage.
• Fast Response Time: The device boasts a rapid response to overcurrent events, ensuring that protection is provided swiftly to prevent damage to the host system.
• Low R_DS(on): The low on-resistance of the internal switch minimizes voltage drop and power loss, enhancing overall efficiency.

Applications

The NCP380HMUAJAATBG is suitable for a variety of applications, including but not limited to:

• Smartphones and portable devices
• USB peripherals and accessories
• Portable media players
• Navigation systems
• Notebook and tablet computers

Product Specifications

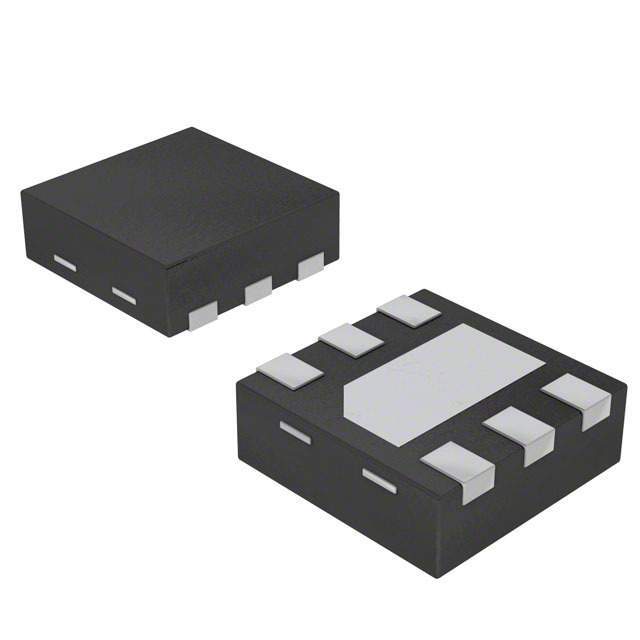

ON Semiconductor's NCP380HMUAJAATBG comes in a compact UDFN-6 package, making it ideal for space-constrained designs. It operates over a wide input voltage range and is compliant with the USB 2.0 and 3.0 power specifications. The device's high level of integration ensures a reduced component count, which simplifies design and can lead to cost savings in mass production.

For designers and engineers looking for a reliable overcurrent protection solution, the NCP380HMUAJAATBG offers the perfect blend of performance, efficiency, and safety. Its robust feature set ensures that it can meet the stringent requirements of modern electronic devices, safeguarding both the product and the end-user.
