The MM74C150N, from ON Semiconductor, is a versatile digital data selector/multiplexer integrated circuit designed to meet a wide range of selection and multiplexing needs in the digital world. This IC is a part of ON Semiconductor's 74C logic family, which is renowned for its reliability and performance.

Key Features

• Logic Type: Data Selector/Multiplexer
• Number of Circuits: 1
• Number of Inputs: 16
• Number of Outputs: 1
• Input Voltage: 3 V to 15 V
• Propagation Delay Time: 210 ns at 5V, 50 ns at 10V, 40 ns at 15V
• Operating Temperature Range: -55°C to +125°C
• Package / Case: PDIP-24
• Mounting Type: Through Hole

Product Description

The MM74C150N is a 16-input data selector/multiplexer which provides the ability to select one line of data from up to 16 sources. The selected data is then presented at the single output line. This selection is controlled by a 4-bit binary address provided to the device. This feature makes it an ideal component for applications that require a high degree of control over input data streams, such as in data routing, signal gating, and multiplexing tasks.

With its wide operating voltage range of 3V to 15V, the MM74C150N offers flexibility in various power environments and is compatible with standard CMOS levels. The device's propagation delay is minimal, ensuring rapid data selection and output without significant lag, making it suitable for high-speed operations.

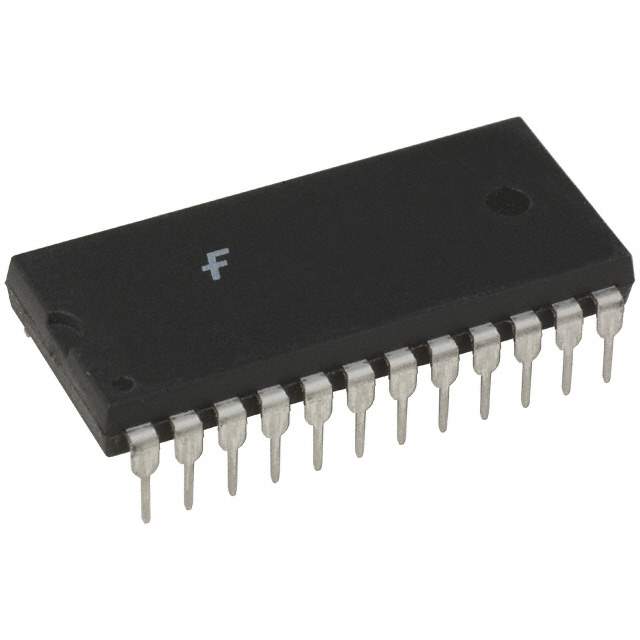

It is packaged in a PDIP-24 (Plastic Dual-In-Line Package), which is suitable for through-hole mounting, thus providing ease of integration into a wide range of electronic circuits. The robust operating temperature range of -55°C to +125°C allows for deployment in extreme environments, ensuring reliable performance under various thermal conditions.

ON Semiconductor's commitment to quality ensures that the MM74C150N is a reliable and durable choice for designers and engineers looking to implement a data selector/multiplexer in their digital systems.
