ON Semiconductor M74VHC1GT04DFT2G Single Inverter

The M74VHC1GT04DFT2G is a high-speed CMOS single inverter fabricated with silicon gate CMOS technology by ON Semiconductor, a company known for its innovative and reliable semiconductor solutions. It achieves high-speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. This product is designed for use in logic level conversion, oscillators, and other general-purpose inverting applications.

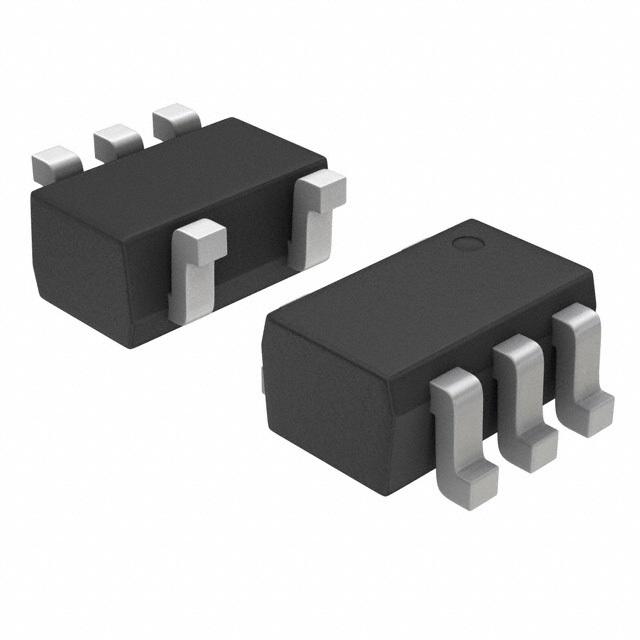

Encased in a compact SOT-353 package, this single inverter is optimized for superior performance in systems where space is at a premium. Its small footprint makes it an ideal choice for portable and space-constrained electronic designs, without compromising on power and reliability.

Key Features

• High Speed: The device operates with propagation delay times that rival those of equivalent Bipolar Schottky TTL circuits, making it suitable for high-speed applications.
• Low Power Dissipation: With CMOS technology, the M74VHC1GT04DFT2G offers the advantage of low power dissipation, which is crucial for battery-operated and power-sensitive devices.
• Power Down Protection: This inverter is equipped with power down protection on inputs, ensuring that the device remains undamaged if the input is at a high voltage level while the chip is powered down.
• High Noise Immunity: The M74VHC1GT04DFT2G features a noise immunity that is characteristic of CMOS devices, making it robust in electrically noisy environments.
• Wide Operating Voltage Range: It can operate on a wide voltage range from 2V to 5.5V, providing flexibility in various application designs and compatibility with TTL levels.

Applications

The versatility of the M74VHC1GT04DFT2G allows it to be used in a wide array of applications including:

• Logic level translation for mixed-voltage systems
• Signal inversion for digital signal processing
• Creation of oscillators in clock generation circuits
• General-purpose inverting functions in a variety of electronic circuits

With its combination of high-speed operation, low power consumption, and compact design, the M74VHC1GT04DFT2G from ON Semiconductor is an excellent choice for designers looking to enhance the performance and efficiency of their electronic systems.
