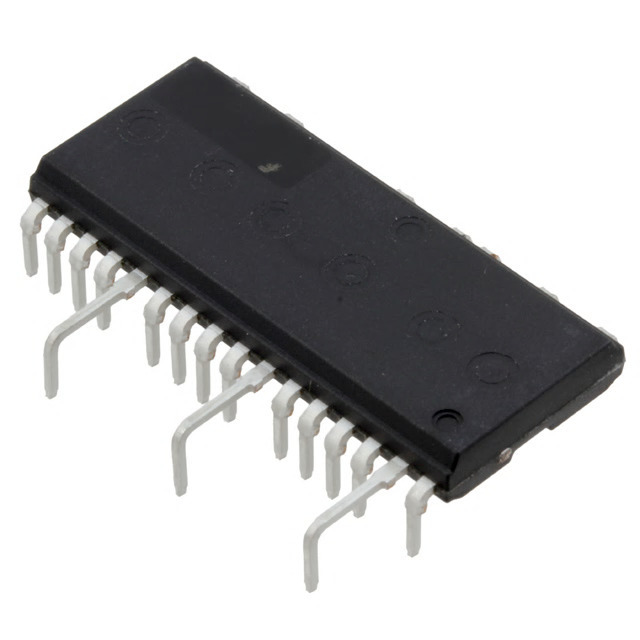

Introducing the FSB50250AT - A Smart Power Module from ON Semiconductor

ON Semiconductor's FSB50250AT is a cutting-edge Smart Power Module (SPM) designed to deliver high-efficiency power management solutions for a wide range of applications. This innovative module integrates a comprehensive set of power elements to provide a compact and reliable motor drive solution, ideal for use in home appliances, fans, pumps, and other low-power motor control applications.

Key Features of the FSB50250AT

• Advanced IGBT Technology: At the heart of the FSB50250AT lies ON Semiconductor's proprietary Insulated Gate Bipolar Transistor (IGBT) technology, which ensures efficient and rapid switching with minimal power losses.
• Integrated Bootstrap Diodes: The module comes with built-in bootstrap diodes for the high-side gate drive circuitry, simplifying the overall design and reducing external component count.
• Overcurrent Protection: To ensure the longevity and safety of your system, the FSB50250AT features overcurrent protection, which helps prevent damage caused by excessive current draw.
• Under-Voltage Lockout (UVLO): The built-in UVLO function protects the device and the system from operating at sub-optimal voltage levels, enhancing performance and reliability.
• Thermal Shutdown: The module is equipped with a thermal shutdown feature, which automatically turns off the device when it reaches an unsafe temperature, thus preventing thermal damage.
• Compact and Efficient Design: The FSB50250AT boasts a compact footprint, which is highly beneficial for space-constrained applications. Its efficient design also leads to reduced energy consumption, making it an eco-friendly option.

Applications

The versatility of the FSB50250AT allows it to be used in a variety of applications. It is particularly well-suited for:

• Home appliances such as washing machines and air conditioners
• Fan controllers for efficient thermal management
• Small electric pumps for water circulation
• Other general-purpose low-power motor drives

With its combination of advanced features and robust protection mechanisms, the FSB50250AT from ON Semiconductor is an excellent choice for designers looking to enhance the performance and reliability of their motor control systems. Its integration capabilities and superior power efficiency make it a standout product in the field of power management technology.
