ON Semiconductor CAT3648HV3-GT2 Overview

The CAT3648HV3-GT2 from ON Semiconductor is a versatile, high-efficiency quad-mode fractional charge pump LED driver. Designed to cater to the needs of portable applications, this component is an ideal choice for driving LED backlights in small-format LCD displays, which are commonly found in mobile phones, digital cameras, and other handheld devices.

Key Features

• Quad-Mode Operation: The device operates in 1x, 1.5x, 2x, and 3x modes, automatically switching between modes to provide a consistent LED brightness while optimizing efficiency based on the LED forward voltage requirements.
• High Efficiency: With efficiencies up to 92%, this charge pump minimizes power consumption, which is crucial for battery-operated devices, thereby extending battery life.
• Low Noise: The CAT3648HV3-GT2 employs a soft-switching technique that significantly reduces output ripple and eliminates the need for external inductors, providing a low noise solution that is essential for sensitive RF and audio applications.
• Adjustable LED Current: The LED current can be set up to 30 mA per channel through an external resistor, providing flexibility in controlling the brightness levels.
• Gradual Dimming Control: It features a 1-wire EZDim™ interface, enabling simple, digital control of LED brightness.

Applications

The CAT3648HV3-GT2 is suitable for a wide array of applications that require efficient, controlled LED backlighting. It is particularly useful in:

• Mobile Phones
• Personal Digital Assistants (PDAs)
• Digital Cameras
• Portable Media Players
• GPS Devices

Product Specifications

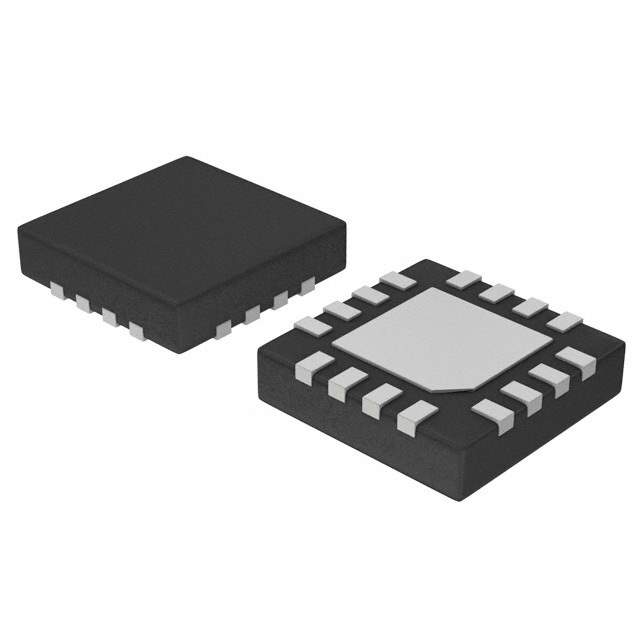

The device comes in a compact, 16-lead TQFN 4x4 mm package, making it an excellent choice for space-constrained applications. It operates over a broad temperature range from -40°C to +85°C, ensuring reliability and performance under varying conditions.

In summary, the ON Semiconductor CAT3648HV3-GT2 is a high-performance, highly efficient LED driver that provides a compact and noise-sensitive solution for portable devices requiring LED backlighting. Its ability to automatically switch charge pump modes and control LED brightness through a simple interface makes it a user-friendly and energy-efficient option for a multitude of applications.
