ON Semiconductor 2N2906 PNP Transistor

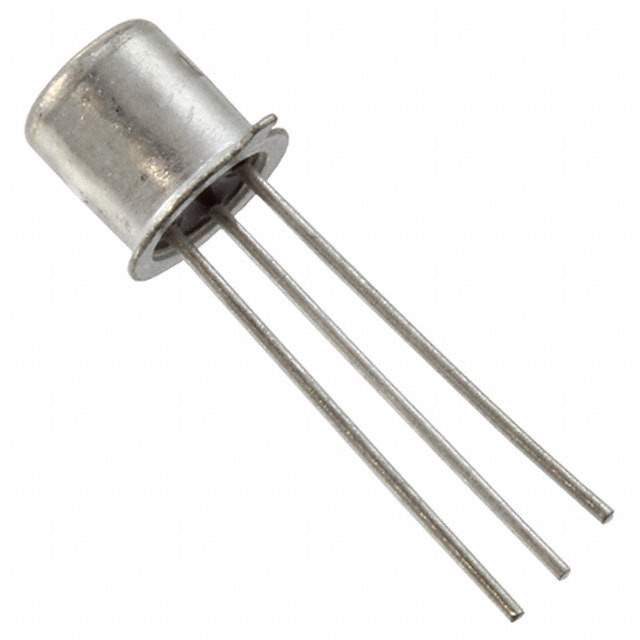

The 2N2906 is a versatile PNP bipolar junction transistor (BJT) from ON Semiconductor, a trusted name in the semiconductor industry. This small-signal transistor is designed for general-purpose amplification and switching applications, making it a staple component in a wide array of electronic circuits.

Key Features

• Type: PNP
• Package: TO-18 metal can
• Collector-Emitter Voltage (VCEO): 40V
• Collector-Base Voltage (VCBO): 60V
• Emitter-Base Voltage (VEBO): 5V
• Collector Current (IC): 600 mA
• Total Device Dissipation (PD): 400 mW
• DC Current Gain (hFE): 100 - 300
• Operating Junction Temperature Range: -55°C to +150°C

The 2N2906 transistor is known for its reliable performance and robustness, with a metal can package that ensures durability and thermal performance. It can be used in a variety of circuits, such as signal amplification, audio amplifiers, and as a switch in various electronic devices. The moderate collector current rating allows it to drive loads in moderate power applications.

Applications

• Linear amplification and switching
• Audio amplifiers
• Signal processing
• Control systems
• Power management

The 2N2906 is especially suited for analog signal control due to its fast switching capabilities and its ability to handle moderate power levels. Its high current gain also makes it an excellent choice for applications requiring high input impedance. The TO-18 metal can package is not only durable but also beneficial for heat dissipation, which is crucial for maintaining the longevity and reliability of the device.

Overall, the ON Semiconductor 2N2906 PNP transistor is a reliable and efficient component for designers and hobbyists alike, offering a combination of performance and durability that is ideal for a broad range of electronic applications.
