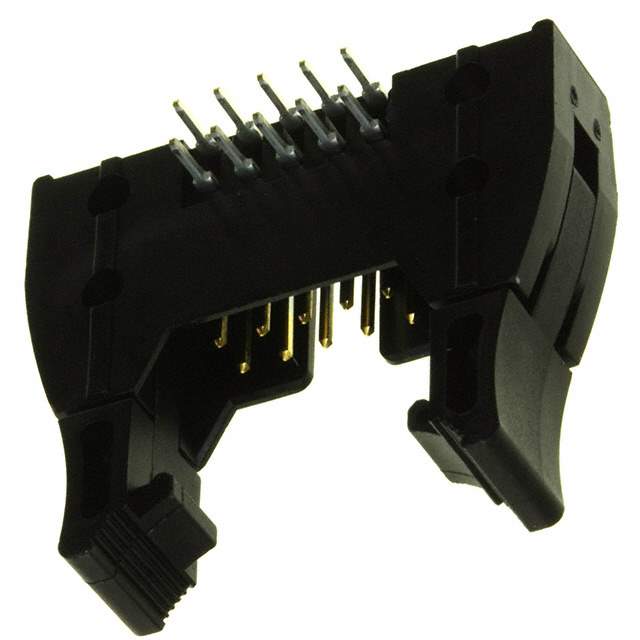

XG4A-1034

Name: XG4A-1034
Brand: Omron
SKU: 1041924
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	XG4A-1034
Manufacturer	Omron
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 10POS 2.54MM / Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Omron Electronics Inc-EMC Div
Series	XG4
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Long
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.335" (8.51mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	5.90µin (0.150µm)
Contact Finish - Post	Tin
Contact Material	Brass, Nickel
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Keying Slot, Mounting Flange
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	300V
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	XG4A
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	XG4A-1034 BY OMZ,XG4A1034,XG4A1034-ND,XG4A1034BYOMZ,OR1001
Standard Package	90
Win Source Part Number	1041924-XG4A-1034
Ultra Librarian 3D Model	Ultra Librarian XG4A-1034 CAD Model

Description

The Omron XG4A-1034 is a shrouded header connector with a total of 10 male pin contacts manufactured by Omron.

Number of Contacts: 10
Gender: Male
Voltage Rating: 300 V
Current Rating: 3 A
Package: Tray
Package Quantity: 90
Application: Board to Cable/Wire
Temperature Range: -55°C to 105°C
Mounting Type: Through Hole, Right Angle
Design: Shrouded 4-Wall
