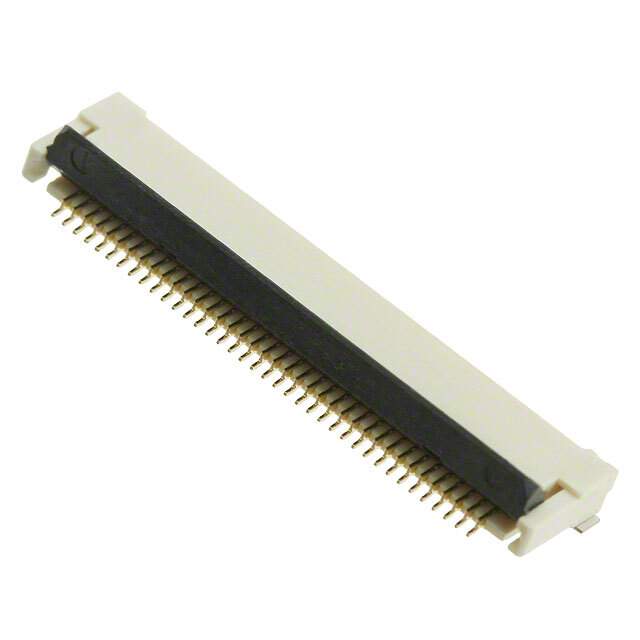

XF2M-3815-1A Real Image
Same model may have multiple batches, images only for reference.

XF2M-3815-1A

Part No XF2M-3815-1A
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 38POS 0.50MM R/A / 38 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel - TR
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 38
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.083" (2.10mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 5.90µin (0.150µm)
Housing Color Natural
Actuator Color Black
Mating Cycles 20
Base Product Number XF2M
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number OR1053DKR,XF2M-3815-1A BY OMZ,XF2M38151A,XF2M38151ABYOMZ,OR1053CT,OR1053TR
Standard Package 1,500
Win Source Part Number 1333392-XF2M-3815-1A
Ultra Librarian 3D Model Ultra Librarian XF2M-3815-1A CAD Model

Description

The Omron Electronics Inc-EMC Div XF2M-3815-1A is a connector assembly manufactured by Omron Electronics Inc-EMC Div.

  • Positions: 38
  • Pitch: 0.020" (0.50mm)
  • Termination Type: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 5.90µin (0.150µm)
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Package Type: Reel - TR
  • Height Above Board: 0.083" (2.10mm)
  • Flat Flex Type: FPC
  • Housing and Actuator Material: Liquid Crystal Polymer (LCP), Halogen-Free
  • Material Flammability Rating: UL94 V-0
  • Housing Color: Natural
  • Connector/Contact Type: Contacts, Top and Bottom
  • FFC, FCB Thickness: 0.30mm
  • Locking Feature: Rotary Lock, Backlock
  • Cable End Type: Tapered
  • Operating Temperature Range: -30°C to 85°C
  • Series: XF2M series
