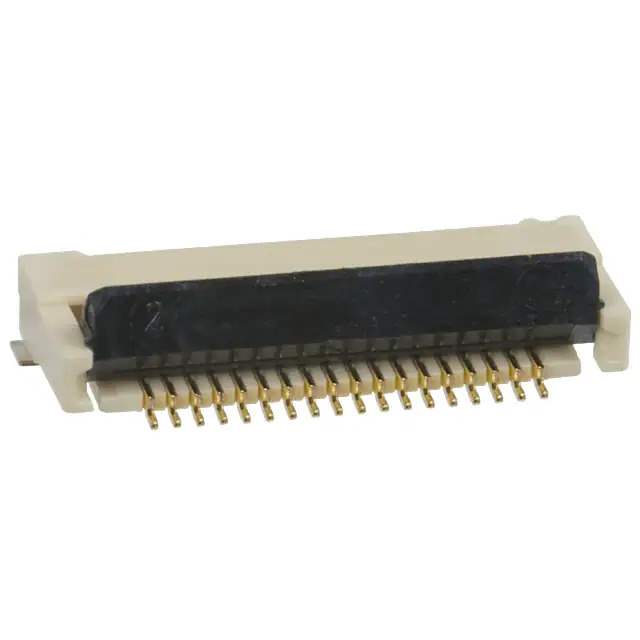

XF2M-1815-1A

Name: XF2M-1815-1A
Brand: Omron
SKU: 851327
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	XF2M-1815-1A
Manufacturer	Omron
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 18POS 0.5MM R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	Omron
Series	XF2M
Package	Tape & Reel
Product Status	Active
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	18
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.083" (2.10mm)
Locking Feature	Rotary Lock, Backlock
Cable End Type	Tapered
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating	50V
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	5.90µin (0.150µm)
Housing Color	Natural
Actuator Color	Black
Mating Cycles	20
Base Product Number	XF2M
Standard Package	1,500 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Win Source Part Number	851327-XF2M-1815-1A
Ultra Librarian 3D Model	Ultra Librarian XF2M-1815-1A CAD Model

Description

The Omron XF2M-1815-1A is a FFC, FPC (Flat Flexible) connector assembly designed for various connector applications.

Positions: 18
Pitch: 0.020" (0.50mm)
Termination: Solder
Contact Finish: Gold Plating
Contact Material: Copper Alloy
Voltage Rating: 50V
Series: XF2M
Mounting: Surface Mount, Right-Angle
Product Status: Active
Package: Tape & Reel
