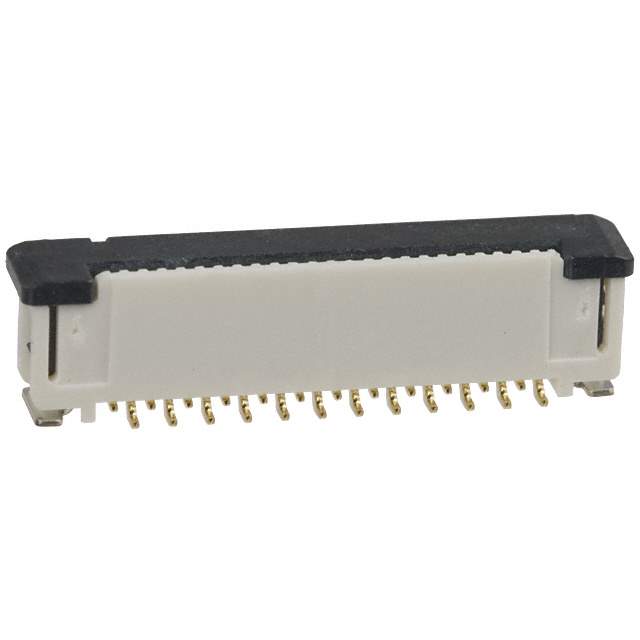

XF2J-2424-11A Real Image
Same model may have multiple batches, images only for reference.

XF2J-2424-11A

Part No XF2J-2424-11A
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC VERT 24POS 0.50MM SMD / ZIF Slide-locking Connector (0.5 mm-pitch)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel
Part Status Obsolete (End Of Life)
Flat Flex Type FPC
Mounting Style SMD
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 24
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.163" (4.15mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Polyamide (PA46), Nylon 4/6
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 5.90μin (0.150μm)
Housing Color Natural
Actuator Color Black
Mating Cycles 30
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803911-XF2J-2424-11A
Ultra Librarian 3D Model Ultra Librarian XF2J-2424-11A CAD Model

Description

The Omron Electronics Inc-EMC Div XF2J-2424-11A is a zero insertion force (ZIF) connector with 24 positions.

  • Pitch: 0.020 inches (0.50mm)
  • Termination: solder
  • Contact Finish: gold, 5.90μin (0.150μm) thick
  • Contact Material: copper alloy
  • Connector/Contact Type: contacts, vertical - 1 sided
  • FFC, FCB Thickness: 0.30mm
  • Housing Material: polyamide (PA46), Nylon 4/6
  • Housing Color: natural
  • Locking Feature: slide lock
  • Cable End Type: tapered
  • Actuator Color: black
  • Operating Temperature: -30°C to 85°C
  • Part Status: obsolete (end of life)
  • Manufacturer Pack Quantity: 1,000
